Speaker-Rear Shelf

WARNING: This page is about a different car, the 2010 Dodge Avenger and 2010 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

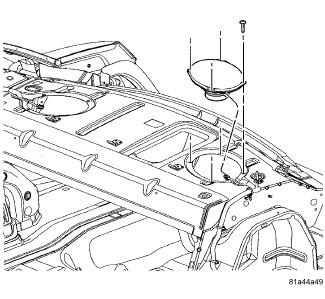

Fig 1: View Of Rear Shelf Speaker
GC0120931Courtesy of CHRYSLER LLC
  1. Connect the electrical connector and install the speaker.
  2. Install the speaker mounting fasteners.
  3. Install the rear shelf trim panel. Refer to Body/Interior/PANEL, Rear Shelf - Installation .
  4. Connect the battery negative cable.
