C1039-Rear Wheel Speed Sensor Circuit High: Notes

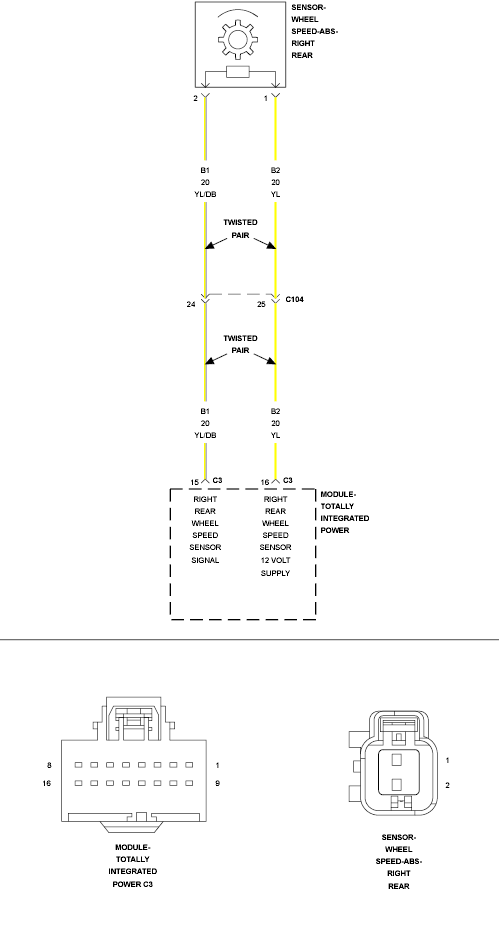

Fig 1: Rear Wheel Speed Sensor Circuit

GC0123564

Courtesy of CHRYSLER LLC
