SHROUD, Steering Column, Upper: Installation: Installation

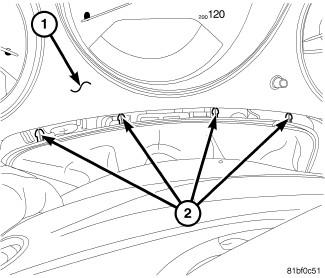

Fig 1: GAP HIDER RETAINING TABS

Courtesy of CHRYSLER LLC

1. Position the upper shroud over the steering column.
2. Align the four upper shroud gap hider retaining tabs (2) with the mounting holes in the instrument cluster (1), then push the tabs upward, securing the shroud.
3. Align the two shroud gap hider side retaining tabs (one each side) with the mounting holes, then push the tabs into place, securing the shroud.
   Fig 2: LOWER SHROUD MOUNTING SCREWS

   Courtesy of CHRYSLER LLC
4. Push the column tilt lever (2) downward (released position).
5. Install the lower shroud (2) over the tilt lever and onto the column.
6. Install the upper shroud onto the lower shroud, clipping the shrouds to one another.
7. Install the three screws (1) attaching the lower shroud to the steering column.
8. Position the column tilt (5) at the full-upward position.
9. Push the tilt lever upward, locking the column in place.
   Fig 3: STEERING COLUMN COVER REINFORCEMENT

   Courtesy of CHRYSLER LLC
10. Install the steering column cover reinforcement (1) using the four mounting screws (2).
11. Install the steering column opening cover. Refer to Body/Instrument Panel/COVER, Steering Column Opening - Installation
