Diesel Engine

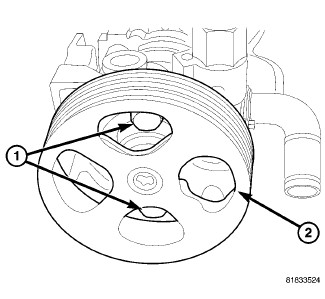

Fig 1: POWER STEERING PUMP - DIESEL

Courtesy of CHRYSLER LLC

Using a lint free towel, wipe clean the open power steering pressure hose end and the power steering pump port. Replace any used O-rings with new. Lubricate the O-ring with clean power steering fluid.
Place the pump in mounting position. Install the two mounting bolts (1) through the pulley (2) openings. Tighten the mounting bolts to 30 N.m (22 ft. lbs.).

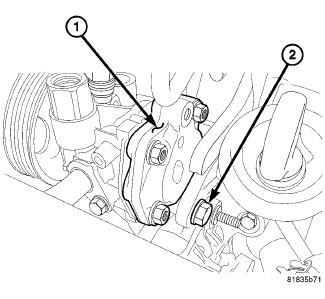

Fig 2: THIRD MOUNTING BOLT - DIESEL
Courtesy of CHRYSLER LLC
Install the rear mounting bolt (2) securing the rear of the pump (1). Tighten the mounting bolt to 30 N.m (22 ft. lbs.).
Install the drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation

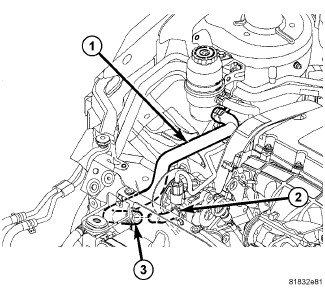

Fig 3: SUPPLY HOSE
Courtesy of CHRYSLER LLC
Install the supply hose (1) at the pump (2).
Clamp the hose clamp (3) securing the supply hose (1) to the pump.

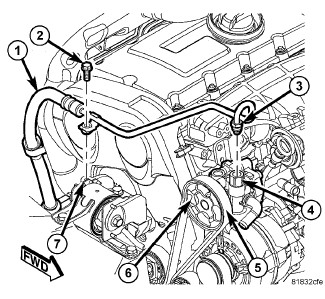

Fig 4: PRESSURE LINE
Courtesy of CHRYSLER LLC
Install the pressure hose (3) at the pump pressure port (4). Tighten the tube nut to 32 N.m (24 ft. lbs.).
Install the pressure hose routing bracket bolt (2) to the engine mount (7). Tighten the bolt to 24 N.m (18 ft. lbs.).
Fill and bleed the power steering system. See Steering - Standard Procedure
Check for leaks.
Install the engine appearance cover.
