SHROUD, Steering Column, Lower: Installation: Installation

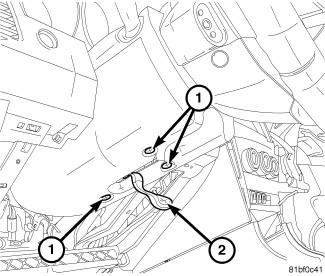

Fig 1: LOWER SHROUD MOUNTING SCREWS

Courtesy of CHRYSLER LLC

1. Push the tilt lever (2) downward (released position).
2. Install the lower shroud (2) over the tilt lever and onto the column.
3. Install the upper shroud onto the lower shroud, clipping the shrouds to one another.
4. Install the three screws (1) attaching the lower shroud to the steering column.
5. Position the column tilt (5) at the full-upward position.
6. Push the tilt lever upward, locking the column in place.

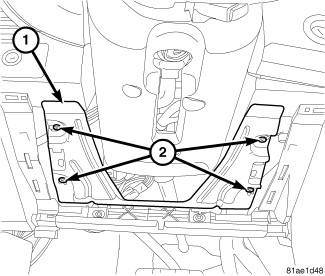

   Fig 2: STEERING COLUMN COVER REINFORCEMENT

   Courtesy of CHRYSLER LLC
7. Install the steering column cover reinforcement (1) using the four mounting screws (2).
8. Install the steering column opening cover. Refer to Body/Instrument Panel/COVER, Steering Column Opening - Installation
