Diagnostic Test

1. Turn the ignition on.
2. With the scan tool, read ORC DTCs.

   Does the scan tool display active: U0175-LOST COMMUNICATION W/RIGHT SIDE SATELLITE ACCELERATION SENSOR 1?

   Yes and Hardtop

   • Go to step  2

   Yes and Convertible

   • Go to step  7

   No

   • Go to step  20

Fig 1: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Disconnect the Right Side Impact Sensor 1 connector.
2. Disconnect the ORC connectors.
3. Connect the ORC 8443-25 Adaptor to the ORC connector.
   WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. Measure the voltage of the (R14) Right Side Impact Sensor 1 Signal circuit and (R16) Sensor Ground circuit at the Right Side Impact Sensor 1 connector and ground.

   Is there any voltage present?

   Yes

   • Repair the (R14) and (R16) Right Side Impact Sensor 1 circuits for a short to battery.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

   No

   • Go to step  3

Fig 2: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance of the (R14) Right Side Impact Sensor 1 Signal circuit between the Right Side Impact Sensor 1 connector and ground.
2. Measure the resistance of the (R16) Right Side Impact Sensor Ground circuit between the Right Side Impact Sensor 1 connector and ground.

   Is the resistance below 100K ohms on either circuit?

   Yes

   • Repair the (R14) Right Side Impact Sensor 1 Signal or (R16) Right Side Impact Sensor 1 Ground circuit for a short to ground.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

   No

   • Go to step  4

Fig 3: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance between the (R14) Right Side Impact Sensor 1 Signal and (R16) Sensor Ground circuits at the Right Side Impact Sensor 1 connector.

   Is the resistance below 100K ohms?

   Yes

   • Repair the (R14) and (R16) Right Side Impact Sensor 1 circuits shorted together.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

   No

   • Go to step  5

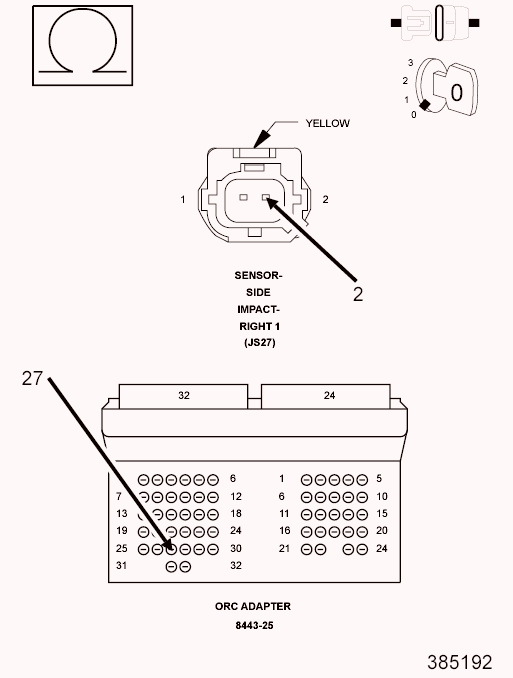

Fig 4: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance of the (R16) Right Side Impact Sensor 1 Ground circuit between the Right Side Impact Sensor 1 connector and the ORC 8443-25 Adaptor.

   Is the resistance below 1 ohm?

   Yes

   • Go to step  6

   No

   • Repair the (R16) Right Side Impact Sensor 1 Ground circuit for an open or high resistance.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

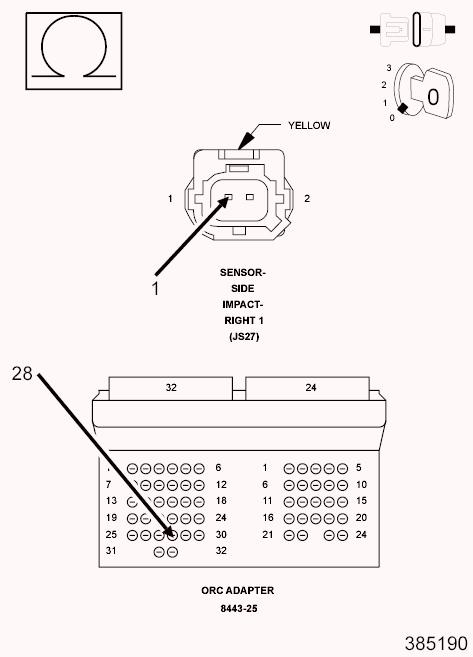

Fig 5: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance of the (R14) Right Side Impact Sensor 1 Signal circuit between the Right Side Impact Sensor 1 connector and the ORC 8443-25 Adaptor.

   Is the resistance below 1 ohm?

   Yes

   • Go to step  12

   No

   • Repair the (R14) Right Side Impact Sensor 1 Signal circuit for an open or high resistance.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

Fig 6: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Disconnect the Right Side Impact Sensor 1 connector.
2. Disconnect the ORC connectors.
3. Connect the ORC 8443-25 Adaptor to the ORC connector.
   WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. Measure the voltage of the (R14) Right Side Impact Sensor 1 Signal circuit and (R16) Sensor Ground circuit at the Right Side Impact Sensor 1 connector and ground.

   Is there any voltage present?

   Yes

   • Repair the (R14) and (R16) Right Side Impact Sensor 1 circuits for a short to battery.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

   No

   • Go to step  8

Fig 7: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance of the (R14) Right Side Impact Sensor 1 Signal circuit between the Right Side Impact Sensor 1 connector and ground.
2. Measure the resistance of the (R16) Right Side Impact Sensor Ground circuit between the Right Side Impact Sensor 1 connector and ground.

   Is the resistance below 100K ohms on either circuit?

   Yes

   • Repair the (R14) Right Side Impact Sensor 1 Signal or (R16) Right Side Impact Sensor 1 Ground circuit for a short to ground.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

   No

   • Go to step  9

Fig 8: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance between the (R14) Right Side Impact Sensor 1 Signal and (R16) Sensor Ground circuits at the Right Side Impact Sensor 1 connector.

   Is the resistance below 100K ohms?

   Yes

   • Repair the (R14) and (R16) Right Side Impact Sensor 1 circuits shorted together.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

   No

   • Go to step  10

Fig 9: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance of the (R16) Right Side Impact Sensor 1 Ground circuit between the Right Side Impact Sensor 1 connector and the ORC 8443-25 Adaptor.

   Is the resistance below 1 ohm?

   Yes

   • Go to step  11

   No

   • Repair the (R16) Right Side Impact Sensor 1 Ground circuit for an open or high resistance.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

Fig 10: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance of the (R14) Right Side Impact Sensor 1 Signal circuit between the Right Side Impact Sensor 1 connector and the ORC 8443-25 Adaptor.

   Is the resistance below 1 ohm?

   Yes

   • Go to step  17

   No

   • Repair the (R14) Right Side Impact Sensor 1 Signal circuit for an open or high resistance.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

Fig 11: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Disconnect the Right Side Impact Sensor 2 connector.
2. Disconnect the ORC connectors.
3. Connect the ORC 8443-25 Adaptor to the ORC connector.
   WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. Measure the voltage of the (R18) Right Side Impact Sensor 2 Signal circuit and (R20) Sensor Ground circuit at the Right Side Impact Sensor 2 connector and ground.

   Is there any voltage present?

   Yes

   • Repair the (R18) and (R20) Right Side Impact Sensor 2 circuits for a short to battery.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

   No

   • Go to step  13

Fig 12: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance of the (R18) Right Side Impact Sensor 2 Signal circuit between the Right Side Impact Sensor 2 connector and ground.

   Is the resistance below 100K ohms?

   Yes

   • Repair the (R18) Right Side Impact Sensor 2 Signal circuit for a short to ground.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

   No

   • Go to step  14

Fig 13: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance between the (R18) Right Side Impact Sensor 2 Signal and (R20) Sensor Ground circuits at the Right Side Impact Sensor 2 connector.

   Is the resistance below 100K ohms?

   Yes

   • Repair the (R18) and (R20) Right Side Impact Sensor 2 circuits shorted together.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

   No

   • Go to step  15

Fig 14: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance of the (R20) Right Side Impact Sensor 2 Ground circuit between the Right Side Impact Sensor 2 connector and the ORC 8443-25 Adaptor.

   Is the resistance below 1 ohm?

   Yes

   • Go to step  16

   No

   • Repair the (R20) Right Side Impact Sensor 2 Ground circuit for an open or high resistance.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

Fig 15: Checking Right Impact Sensor Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance of the (R18) Right Side Impact Sensor 2 Signal circuit between the Right Side Impact Sensor 2 connector and the ORC 8443-25 Adaptor.

   Is the resistance below 1 ohm?

   Yes

   • Go to step  17

   No

   • Repair the (R18) Right Side Impact Sensor 2 Signal circuit for an open or high resistance.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

1. Replace the Right Side Impact Sensor 1.
2. Reconnect the vehicle body harness to the impact sensor.
3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.
   WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. Connect the scan tool to the Data Link Connector - use the most current software available.
5. Use the scan tool and erase the stored codes in all airbag system modules.
6. Turn the Ignition Off, and wait 15 seconds before turning the Ignition On.
7. Wait one minute, and read active codes and if there are none present read the stored codes.

   Did the active Right Side Impact Sensor 1 DTC return?

   Yes and Hardtop

   • Go to step  18

   Yes and Convertible

   • Go to step  19

   No

   • Repair is complete.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

1. Replace the Right Side Impact Sensor 2.
2. Reconnect the vehicle body harness to the impact sensor.
3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.
   WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. Connect the scan tool to the Data Link Connector - use the most current software available.
5. Use the scan tool and erase the stored codes in all airbag system modules.
6. Turn the Ignition Off, and wait 15 seconds before turning the Ignition On.
7. Wait one minute, and read active codes and if there are none present read the stored codes.

   Did the active Right Side Impact Sensor 2 DTC return?

   Yes

   • Go to step  19

   No

   • Repair is complete.
   • Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

If there are no possible causes remaining, view repair.

Repair

• Replace the Occupant Restraint Controller in accordance with Service Instructions.
• Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

1. With the scan tool, record and erase all DTCs from all Airbag modules.
2. If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.
   WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
4. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
5. The following additional checks may assist you in identifying a possible intermittent problem.
6. Reconnect any disconnected components and harness connector.
   WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
7. With the scan tool monitor active codes as you work through the following steps.
   WARNING: Maintain a safe distance from all airbags while performing the following steps. Failure to follow these instructions may result in possible serious or fatal injury.
8. Wiggle the wiring harness and connectors of the related airbag circuit or component.
9. If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.
10. If only stored codes return continue the test until the problem area has been isolated.
11. In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

    Are any ACTIVE DTCs present?

    Yes

    • Perform the appropriate DTC. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Diagnosis and Testing .

    No

    • No problem found at this time. Erase all codes before returning vehicle to customer.
