B1B04-Driver Airbag Squib 2 Circuit Low: Notes

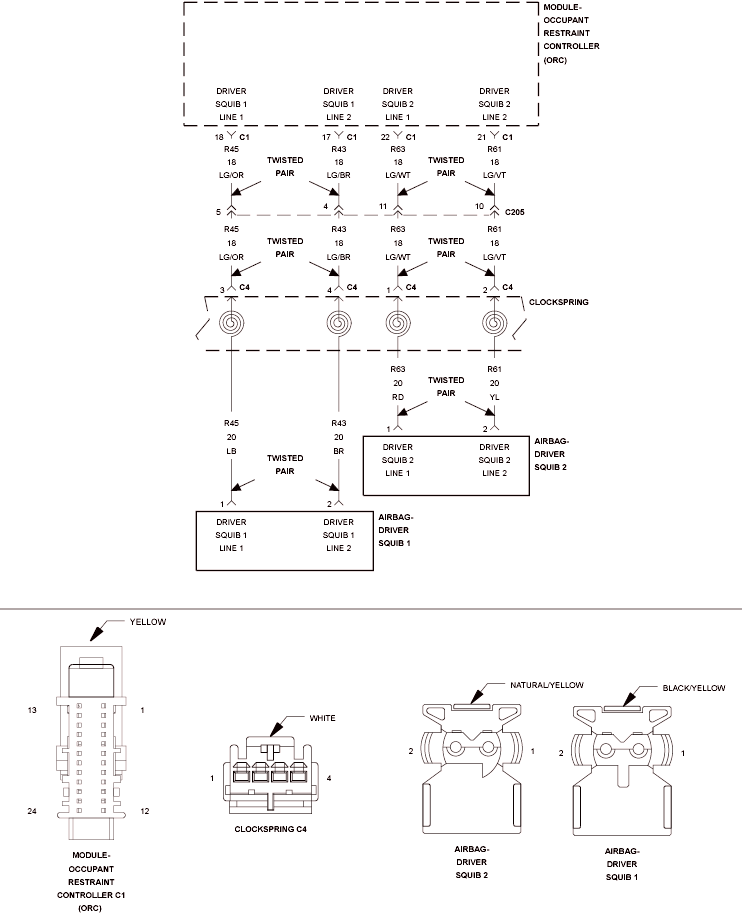

Fig 1: Driver Airbag Squib 1 Circuit

GC0123454

Courtesy of CHRYSLER LLC
