Diagnostic Test

WARNING: This page is about a different variant/trim than selected.

CHECK TO SEE IF DTC IS CURRENT
1. With the scan tool, view DTCs.
  Is the status Active for this DTC or is Starts Since Set counter 2 or less?

  Yes
  - Go to step 2
  No
  - Go to step 6
CHECK THE PCM AND WIRING WITH THE TRANSMISSION SIMULATOR
1. Turn the ignition off to the lock position.
2. Remove the Ignition Switch Feed fuse from the TIPM.
  CAUTION: Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being started in gear.

  WARNING: The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in possible serious or fatal injury.
3. Install the Transmission Simulator 8333A and the Electronic Transmission Adapter kit.
4. Ignition on, engine not running.
5. With the Transmission Simulator, turn the Input/Output switch to OFF.
6. With the scan tool, monitor the TRANS TEMP VOLTS while turning the Thermistor Voltage switch to all three positions on the Transmission Simulator.
7. Compare the scan tool readings with the numbers listed on the Transmission Simulator.
  Do the readings on the Transmission Simulator match the scan tool readings ± 0.2 of a volt?

  Yes
  - Replace the Transmission Temperature Sensor (in the TRS Assembly) in accordance with the Service Information.
  - Perform the 62TE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 3
CHECK THE (T54) TRANSMISSION TEMPERATURE SIGNAL CIRCUIT FOR AN OPEN

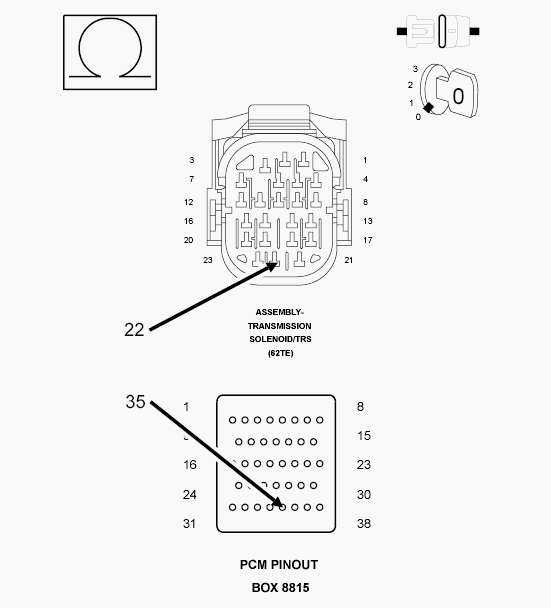

Fig 1: Checking Transmission Temperature Signal Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the PCM C4 harness connector.
3. Disconnect the Transmission Solenoid/TRS Assembly harness connector
  CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 to perform diagnosis.
4. Measure the resistance of the (T54) Transmission Temperature Signal circuit between the appropriate terminal of the PCM Pinout Box 8815 and the Transmission Solenoid/TRS Assembly harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (T54) Transmission Temperature Signal circuit for an open.
  - Perform the 62TE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 4
CHECK THE (T13) SENSOR GROUND CIRCUIT FOR AN OPEN

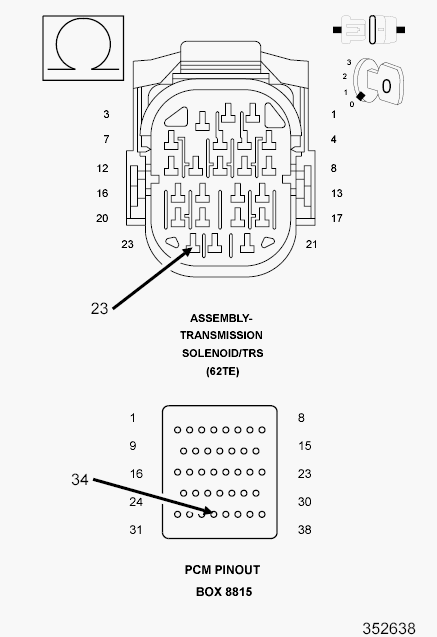

Fig 2: Checking Sensor Ground Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (T13) Sensor Ground circuit between the appropriate terminal of the PCM Pinout Box 8815 and the Transmission Solenoid/TRS Assembly harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (T13) Sensor Ground circuit for an open.
  - Perform the 62TE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 5
CHECK THE (T54) TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

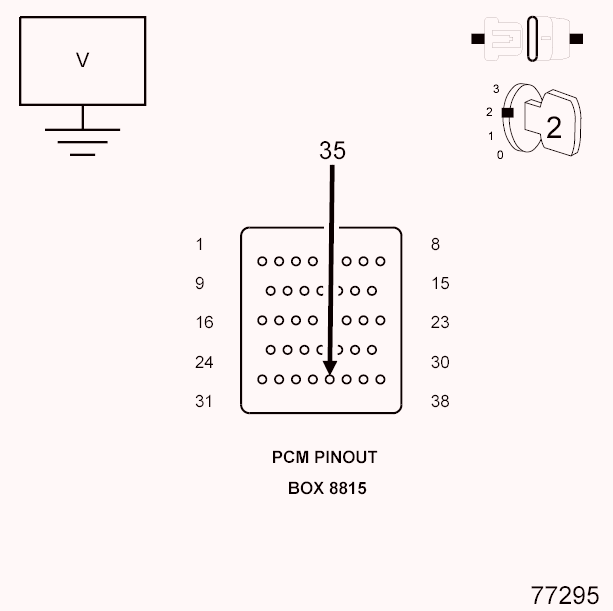

Fig 3: Checking Transmission Temperature Sensor Signal Circuit
Courtesy of CHRYSLER LLC
1. Ignition on, engine not running.
2. With the scan tool in the TIPM, actuate the TCM output.
3. Measure the voltage of the (T54) Transmission Temperature Signal circuit in the appropriate terminal of the PCM Pinout Box 8815.
  Is the voltage above 0.5 volts?

  Yes
  - Repair the (T54) Transmission Temperature Sensor Signal circuit for a short to voltage.
  - Perform the 62TE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. Check for Service Information Tune-ups or Service Bulletins for any possible causes that may apply. If no problems are found, replace and program the PCM in accordance with the Service Information. With the scan tool, perform Quick Learn.
  - Perform the 62TE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CHECK THE WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wires while checking for shorted and open circuits.
4. With the scan tool, check the Event Data to help identify the conditions in which the DTC was set.
5. Check for any Service Information Tune-ups or Service Bulletins for any possible causes that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the 62TE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Test Complete.
