Section 16 (Powertrain Control Module (Pcm) - Electrical Diagnostics - 41TE Automatic Transmission)
>>
DTC Troubleshooting
>>
P0957-AUTOSTICK Circuit Low
>>
Circuit Schematic
Circuit Schematic
WARNING:
This page is about a different variant/trim than selected.

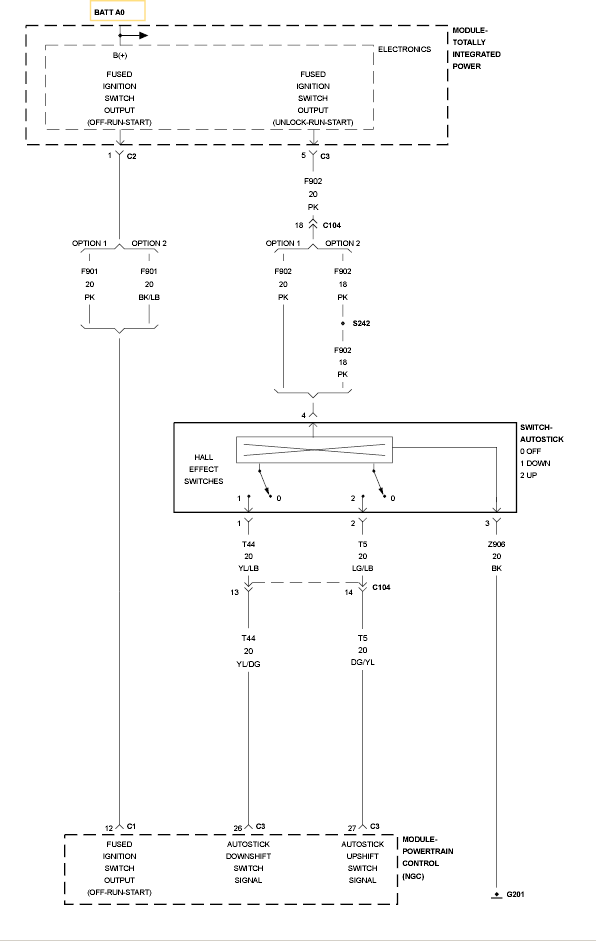

Fig 1: Fused Ignition Switch Output (Run/Start) Circuit Schematic
Courtesy of CHRYSLER LLC
