Section 16 (Powertrain Control Module (Pcm) - Electrical Diagnostics - 41TE Automatic Transmission)
>>
DTC Troubleshooting
>>
P0711-Transmission Temperature Sensor Performance
>>
Circuit Schematic
Circuit Schematic
WARNING:
This page is about a different variant/trim than selected.

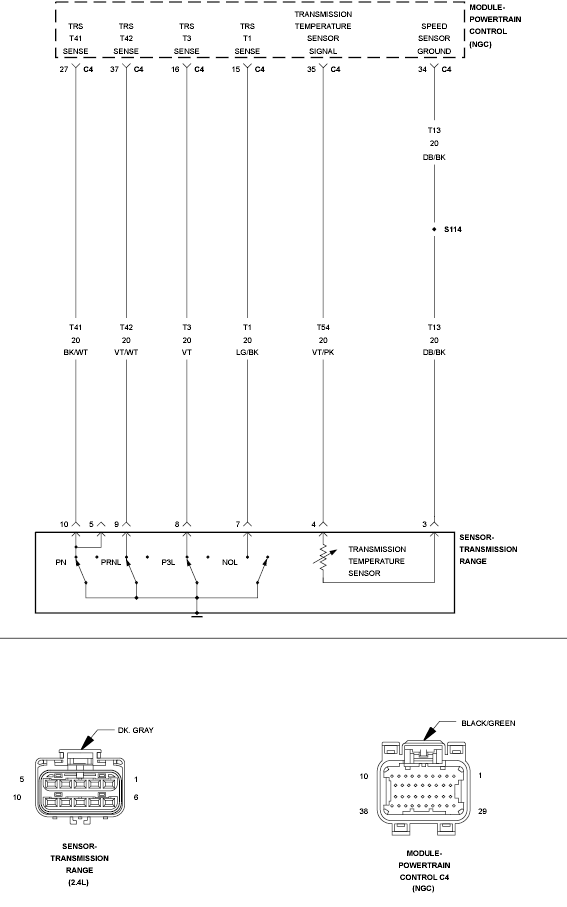

Fig 1: Transmission Temperature Sensor Signal Circuit Schematic
Courtesy of CHRYSLER LLC
