MODULE, Door: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Avenger and 2010 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

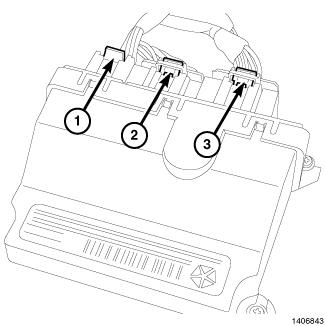

Fig 1: Electrical Connector
GC0104140Courtesy of CHRYSLER LLC
  1. Position the door control module to the front door hardware module carrier.
  2. Install and tighten the four screws that secure the door control module to the front door hardware module carrier. Tighten the screws securely.
  3. If the vehicle is so equipped, reconnect the black 12-way electrical connector (3), then the brown 20-way electrical connector (2) followed by the black 10-way electrical connector (1) to the door control module connector receptacles.
  4. Reinstall the trim panel to the inside of the front door. Refer to Body/Door - Front/PANEL, Door Trim - Installation .
  5. Reconnect the battery negative cable.
  6. The Clear/Relearn procedure should be performed following service of a door control module so that the module can learn the correct hard stops of the power window regulator. Refer to Electrical/Power Windows - Standard Procedure .
