INSULATOR, Engine Mount, Left: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Avenger and 2010 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

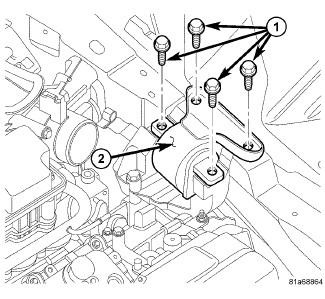

Fig 1: Engine Mount Insulator and Vertical Bolts
GC0121783Courtesy of CHRYSLER LLC
  1. Position mount to mounting bracket.
  2. Raise transmission into position with floor jack.
  3. Install the four vertical bolts (1). Torque fasteners to 61 N.m (45 ft. lbs.).
  4. Remove floor jack and wooden block.
  5. Install the air cleaner housing assembly. See Engine/Air Intake System/BODY, Air Cleaner - Removal .
  6. Connect negative battery cable.
