SIREN, Export: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Avenger and 2010 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

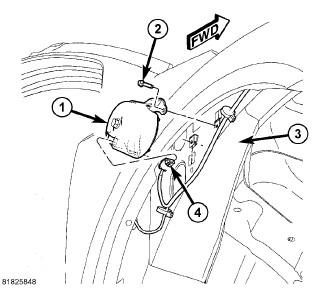

Fig 1: SIREN R/I
GC0102616Courtesy of CHRYSLER LLC
  1. Position siren (1) on load form and install retaining screws (2).
  2. Connect the siren electrical connector (4).
  3. Install the right front wheelhouse splash shield. Refer to Body/Exterior/SHIELD, Splash - Installation .
  4. Connect the battery negative cable.
