MODULE, Sentry Key Immobilizer (SKREEM): Installation: Installation: Avenger

WARNING: This page is about a different car, the 2010 Dodge Avenger and 2010 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

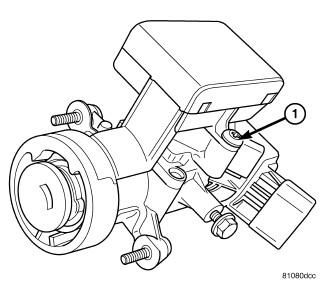

Fig 1: SKREEM From Ignition Cylinder Assembly
GC0121147Courtesy of CHRYSLER LLC
  1. Install the WCM retaining screw (1) and flex the retaining tab to secure the WCM to he ignition switch/cylinder.
  2. Route the ignition switch/cylinder assembly through the lower steering column opening.

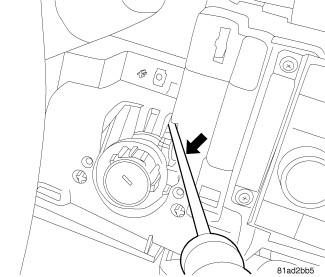

    Fig 2: Identifying Switch Locking Tab
    GC0121043Courtesy of CHRYSLER LLC
  3. Position the ignition switch and verify the lock tab has secured the switch into position.
  4. Connect the WCM antenna to the WCM receiver.

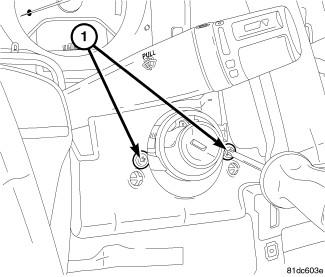

    Fig 3: Removing/Installing Ignition Switch Bracket
    GC0121150Courtesy of CHRYSLER LLC
  5. Install the two ignition switch mounting screws (1) and install the one upper screw to the ignition cylinder support bracket. Secure the left side of the center instrument panel after the inboard screw is in place.

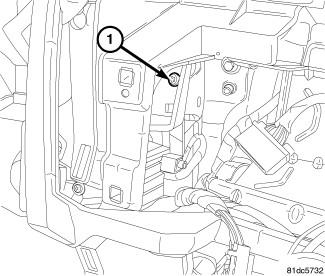

    Fig 4: BRACKET-IGNITION SWITCH
    GC0121145Courtesy of CHRYSLER LLC
  6. Install the ignition switch support bracket screw (1).
  7. Install the shift interlock cable into the ignition switch.

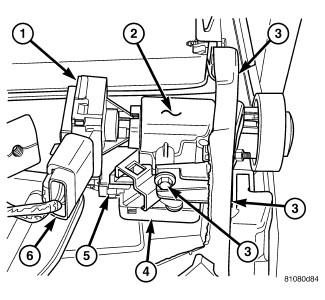

    Fig 5: Ignition Switch/SKREEM Electrical Connector - Remove/Install
    GC0121144Courtesy of CHRYSLER LLC
  8. Reach up behind the left side of the center stack and connect the ignition switch electrical connector (6) and the WCM electrical connector (5).
  9. Install the instrument cluster. Refer to Electrical/Instrument Cluster - Installation .
  10. Install the drivers surround bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Panel - Installation .
  11. Install the instrument cluster trim bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Cluster - Installation
  12. Install the three screws from the lower steering column shroud and secure the upper and lower shroud to the steering column.
  13. Install the radio. Refer to Electrical/Audio and Video/RADIO - Installation
  14. Install the upper center instrument panel trim bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Panel - Installation
  15. Install the center console trim bezel. Refer to Body/Interior/BEZEL, Center Console - Installation .
  16. Connect battery negative cable.
