Circuit Schematic

WARNING: This page is about a different car, the 2010 Dodge Avenger and 2010 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

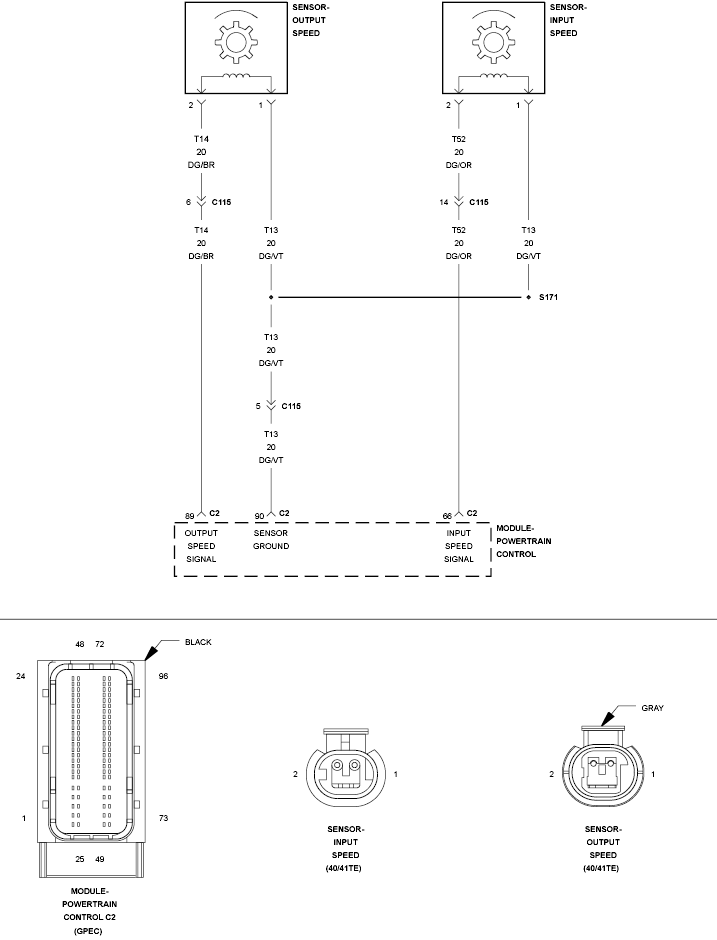

Fig 1: Inpu/Outputt Speed Sensor Circuit Schematic
GC0124016Courtesy of CHRYSLER LLC
