Diagnostic Test

WARNING: This page is about a different car, the 2010 Dodge Avenger and 2010 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. VERIFY THAT DTC B1A67-STEERING COLUMN LOCK MODULE BOLT CONTROL PERFORMANCE
    1. With the scan tool, record and erase WCM DTCs.
    2. Insert and remove the key from the ignition switch several times.
    3. With the scan tool, read the active DTCs.

      Does the scan tool display: B1A67-STEERING COLUMN LOCK MODULE BOLT CONTROL PERFORMANCE as active?

      Yes

      • Go to step  2

      No

      • Go to step  4
  2. STEERING COLUMN LOCK MODULE

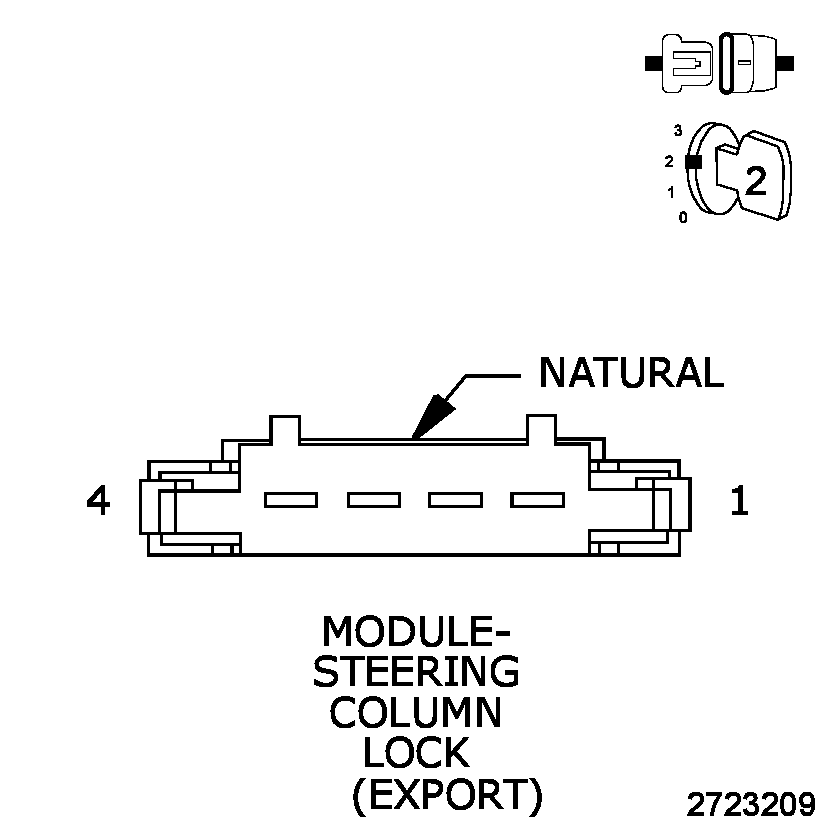

    Fig 1: Identifying Steering Column Lock Module Connector Terminals
    GC0127734Courtesy of CHRYSLER LLC
    1. With the scan tool, erase the DTCs.
    2. Turn the ignition off.
    3. Disconnect the Steering Column Lock Module harness connector.
      NOTE: Check connectors - Clean and repair as necessary.
    4. Turn the ignition on.
    5. Cycle the ignition switch from On to Off three times.
    6. Insert and remove the key from the ignition switch several times.
    7. Turn the ignition on.
    8. With the scan tool, read the active DTCs.

      Does the scan tool display: B1A67-STEERING COLUMN LOCK MODULE BOLT CONTROL PERFORMANCE as active?

      Yes

      • Go to step  3

      No

  3. CHECK THE (F892) IGNITION SWITCH OUTPUT (KEY-IN) CIRCUIT FOR A SHORT TO GROUND

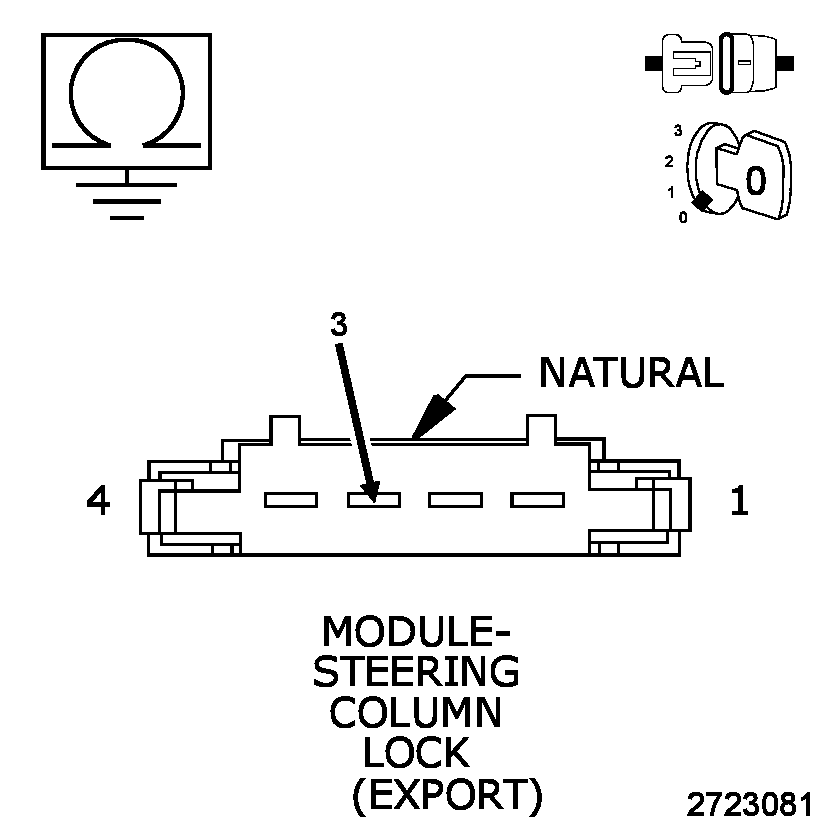

    Fig 2: Checking Ignition Switch Output (Key-In) Circuit For Short To Ground
    GC0127735Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Disconnect the Wireless Control Module harness connector.
    3. Measure the resistance between ground and the (F892) Ignition Switch Output (Key-In) circuit in the Steering Column Lock harness connector.

      Is the resistance below 10,000 Ohms?

      Yes

      No

  4. INTERMITTENT TEST
    1. Turn the ignition off.
      NOTE: Check for the following conditions:
      • Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or partially broken wires.
      • Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
      • Perform any Technical Service Bulletins (TSB) that may apply.

      Were any problems found?

      Yes

      No

      • Test Complete.
