BLADE, Wiper: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Avenger and 2010 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

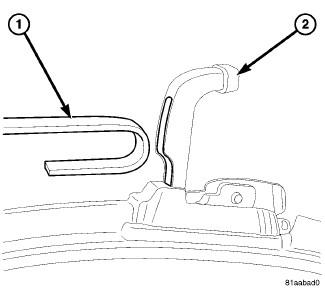

Fig 1: ARM THROUGH BLADE RETAIN CLIP

Courtesy of CHRYSLER LLC

Slip the wiper arm (1) through the locking cover (2).

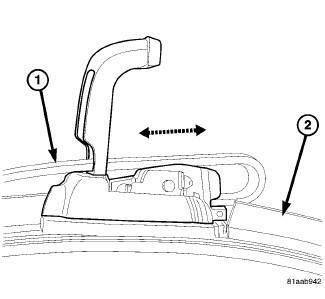

Fig 2: BLADE ON/OFF OF ARM
Courtesy of CHRYSLER LLC
Slip the wiper arm (1) into the wiper blade (2) and pull away from vehicle until blade pivot is fully seated in the arm hook.

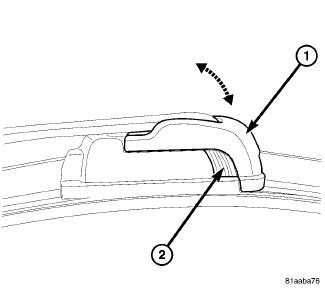

Fig 3: COVER TO RELEASE BLADE
Courtesy of CHRYSLER LLC
Push the locking cover (1) down onto blade until it latches and locks the blade onto the arm.
Lower arm onto window.
