Section 10 (Starting System (Service Information)): Starter: Installation: 2.7L

WARNING: This page is about a different car, the 2010 Dodge Avenger and 2010 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

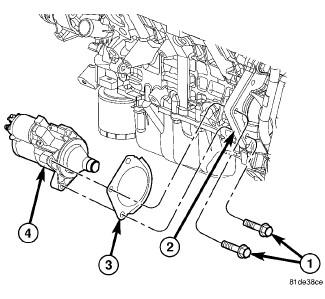

Fig 1: 2.7L EER STARTER R AND I
GC0120995Courtesy of CHRYSLER LLC
  1. Install starter motor (4) and dust shield (3) to transmission housing (2).
  2. Install starter mounting bolts (1) to transmission housing (2). Tighten bolts to 54 N.m (40 ft. lbs.).

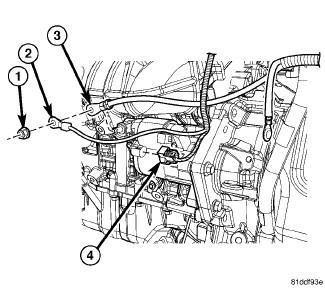

    Fig 2: 2.7L EER ELECTRICAL CONNECTION
    GC0120994Courtesy of CHRYSLER LLC
  3. Install battery cable (3), ignition sense wire (2) and battery cable nut (1) to solenoid stud. Tighten nut to 10 N.m (90 in. lbs.).
  4. Connect electrical connector (4) to starter solenoid.

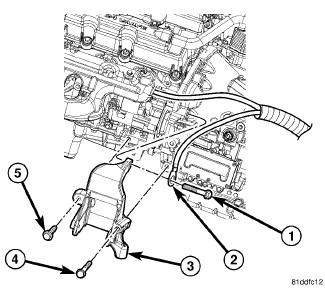

    Fig 3: 2.7L TORQUE REACTION BRACKET
    GC0120993Courtesy of CHRYSLER LLC
  5. Install torque reaction bracket (3) to vehicle.
  6. Install torque reaction bracket to engine bolt (5). Hand tighten bolt.
  7. Install torque reaction bracket to transmission bolt (4). Hand tighten bolt.
  8. Install negative battery cable (2).
  9. Install torque reaction bracket transmission to starter bolt (1). Hand tighten bolt.

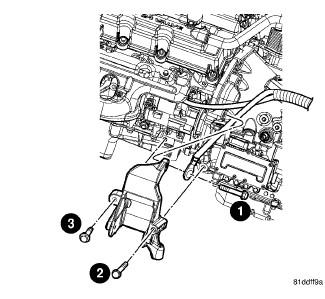

    Fig 4: 2.7L TBR MANDATORY TORQUE SEQUENCE
    GC0121006Courtesy of CHRYSLER LLC
    CAUTION: The torque reaction bracket bolts need to be tightened using a mandatory torque sequence. Failure to tighten bolts using the mandatory torque sequence provided may result in damage to the fasteners, bracket, and threaded bolts holes for the engine and transmission.
  10. Tighten bolts in a mandatory torque sequence to 54 N.m (40 ft. lbs.).
    Fig 5: CROSSMEMBER REAR
    GC0120992Courtesy of CHRYSLER LLC
  11. Install crossmember to vehicle. Tighten bolts (1) to 50 N.m (37 ft. lbs.).

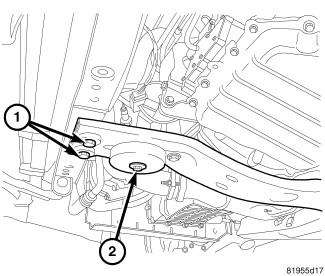

    Fig 6: ENGINE MOUNT/CROSS MEMBER
    GC0120991Courtesy of CHRYSLER LLC
  12. Install lower engine anti-roll mount bolt (2) and tighten bolt to 47 N.m (35 ft. lbs.).
  13. Install crossmember bolts (1) and tighten bolts to 55 N.m (40.5 ft. lbs.).
    Fig 7: HORIZONTAL BOLT
    GC0120990Courtesy of CHRYSLER LLC
  14. Install mount through bolt (1) and tighten to 47 N.m (35 ft. lbs.).
  15. Connect negative battery cable, tighten nut to 4.5 N.m (40 in. lbs.).
