P2122-Accelerator Pedal Position Sensor 1 Circuit Low: Notes

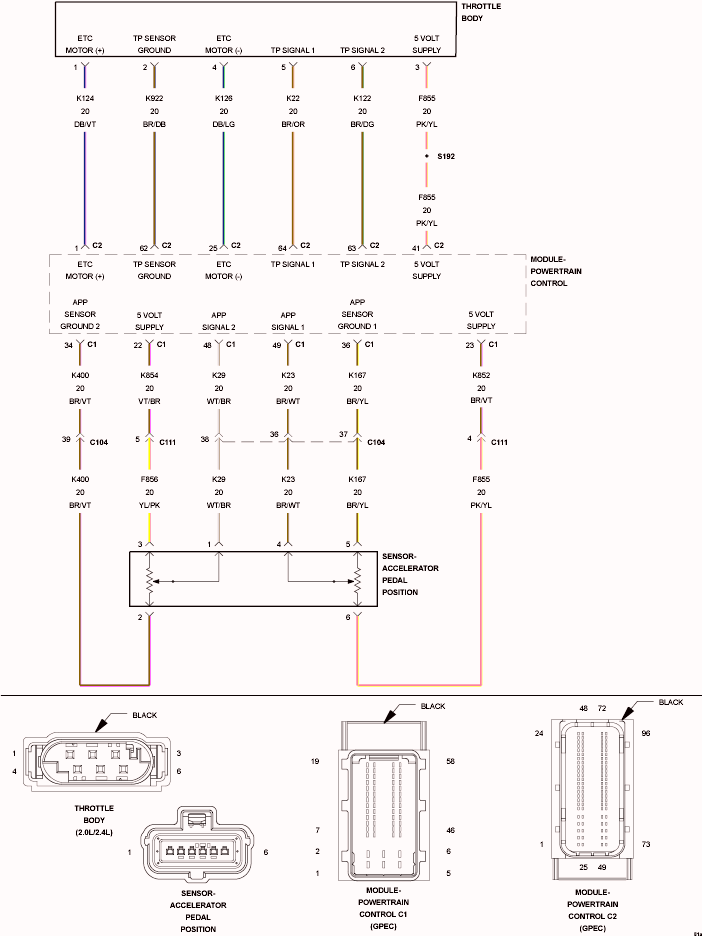

Fig 1: Accelerator Pedal Position Sensor Circuit

GC0123868

Courtesy of CHRYSLER LLC
