Home >> Chrysler >> 2009 >> Sebring Base, 2D Convertible, ED3 >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0353 To P0503 - GPEC >> P0440-General EVAP System Failure >> Notes

P0440-General EVAP System Failure: Notes

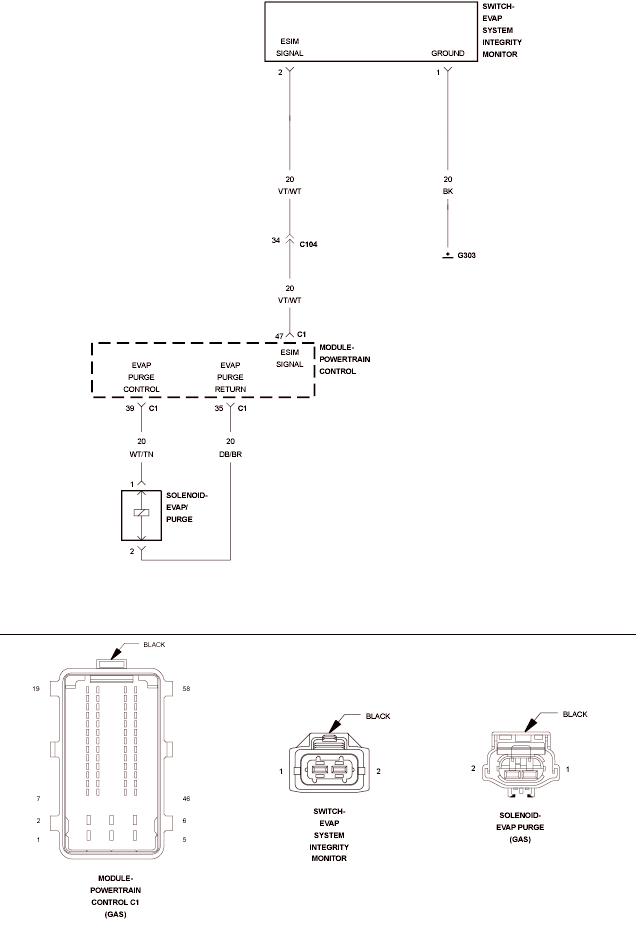

Fig 1: EVAP System Circuit

GC0123836

Courtesy of CHRYSLER LLC
