Charging System (Service Information): Generator: Removal: 3.5L

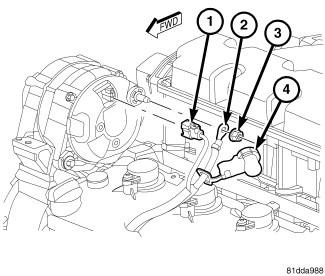

Fig 1: 3.5L GENERATOR ELECTRICAL CONNECTOR

Courtesy of CHRYSLER LLC

CAUTION: Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.

1. Disconnect and isolate negative battery cable.
2. Remove generator drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Removal .
3. Unsnap plastic protective cover (4) from B+ mounting stud.
4. Remove B+ terminal mounting nut (3) and B+ terminal (2) at top of generator.
5. Disconnect field wire electrical connector (1) by pushing on connector tab.

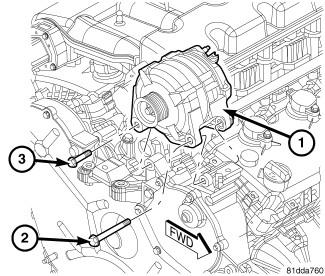

   Fig 2: 3.5L Generator Remove/Install

   Courtesy of CHRYSLER LLC
6. Remove short mounting bolt (3) from generator (1).
7. Remove long mounting bolt (2) from generator (1).
8. Remove generator (1) from engine mounting bracket.
