Charging System (Service Information): Generator: Removal: 2.0L/2.4L

Fig 1: LOWER AIR DAM

Courtesy of CHRYSLER LLC

1. Disconnect and isolate negative battery cable at battery.
2. Remove the right front wheel.
3. Remove the underbody air dam.

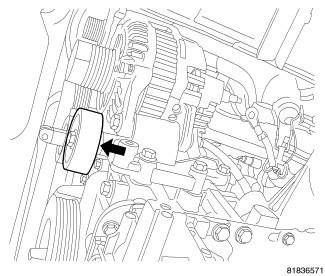

   Fig 2: IDLER PULLEY LOCATION

   Courtesy of CHRYSLER LLC
4. Remove the accessory drive splash shield.
5. Remove the serpentine belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Removal .
   Fig 3: IDLER PULLEY REMOVAL/INSTALL

   Courtesy of CHRYSLER LLC
6. Remove the accessory drive idler pulley.
   Fig 4: LOWER MOUNTING BOLT LOOSE

   Courtesy of CHRYSLER LLC
7. Loosen the lower mounting bolt.
   Fig 5: A/C COMPRESSOR RELOCATION

   Courtesy of CHRYSLER LLC
8. Loosen the A/C compressor and relocate, pull down and to outboard side of vehicle to make room to remove generator.
   Fig 6: FIELD CONNECTION

   Courtesy of CHRYSLER LLC
9. Unplug field circuit from generator.
   Fig 7: BATTERY CABLE CONNECTION

   Courtesy of CHRYSLER LLC
10. Remove the B+ terminal nut and wire.
    Fig 8: UPPER MOUNTING BOLT

    Courtesy of CHRYSLER LLC
11. Remove the upper mounting bolt.
12. Remove the generator lower mounting bolt.
    Fig 9: BATTERY STUD LOCATION

    Courtesy of CHRYSLER LLC
13. Relocate the battery terminal (1) to the other side of the A/C line (2) for removal of the generator.
    Fig 10: ROTATE GENERATOR

    Courtesy of CHRYSLER LLC
14. Rotate generator pulley down.
    Fig 11: Removing/Installing Generator

    Courtesy of CHRYSLER LLC
15. Slide generator down and out of vehicle.
