Charging System (Service Information): Generator: Installation: 3.5L

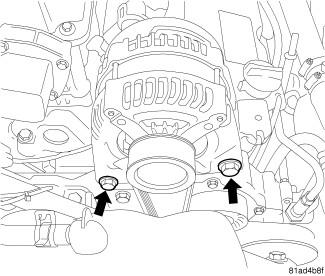

Fig 1: MOUNTING BOLTS

Courtesy of CHRYSLER LLC

1. Install generator.
2. Install mounting bolts and tighten to 26 N.m (19 ft. lbs.).

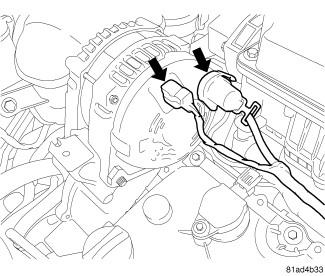

   Fig 2: CABLE CONNECTIONS

   Courtesy of CHRYSLER LLC
3. Install battery cable. Tighten nut to 10 N.m (88.5 in. lbs.)
4. Connect electrical connector to generator.
5. Install access drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation .
6. Install negative battery cable remote terminal onto remote battery post. Tighten nut to 16.5 N.m (12 ft. lbs.).
