Shift Lever Assembly Connector End View (C1)

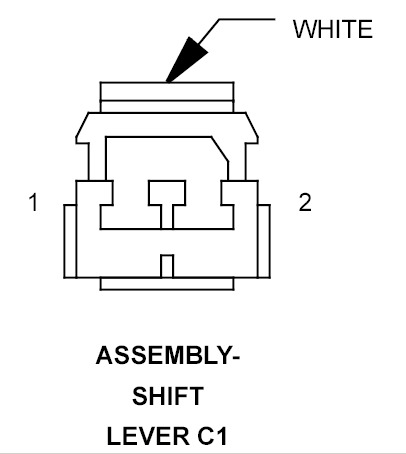

ASSEMBLY-SHIFT LEVER C1 - WHITE 2 WAY

GJS880021Courtesy of CHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K321 22BR/YL BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID UNLOCK
2 Z907 20BK GROUND
