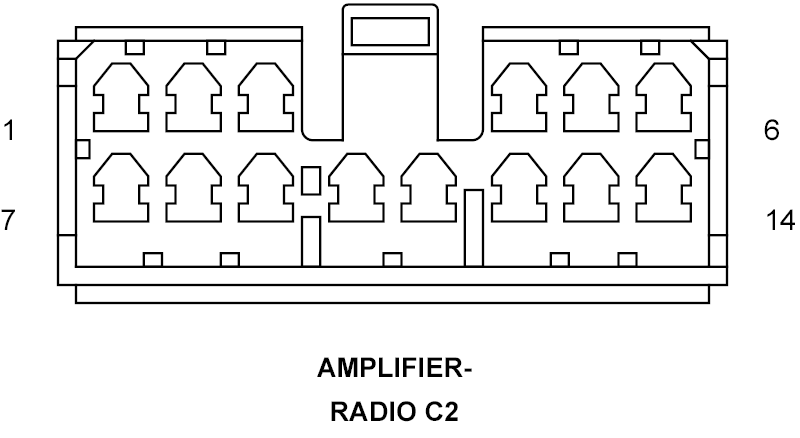

Radio Amplifier Connector End View (C2)
AMPLIFIER-RADIO C2 - 14 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X201 18GY/VT | LEFT FRONT DOOR SPEAKER (+) |
| 2 | X202 18DG/VT | RIGHT FRONT DOOR SPEAKER (+) |
| 3 | X303 18DG/TN | LEFT REAR SPEAKER (+) |
| 4 | X304 18DG/BR | RIGHT REAR SPEAKER (+) |
| 5 | - | - |
| 6 | - | - |
| 7 | X291 18GY/YL | LEFT FRONT DOOR SPEAKER (-) |
| 8 | X292 18DG/YL | RIGHT FRONT DOOR SPEAKER (-) |
| 9 | X393 18DG/GY | LEFT REAR SPEAKER (-) |
| 10 | - | - |
| 11 | - | - |
| 12 | X394 18YL/GY | RIGHT REAR SPEAKER (-) |
| 13 | - | - |
| 14 | - | - |
