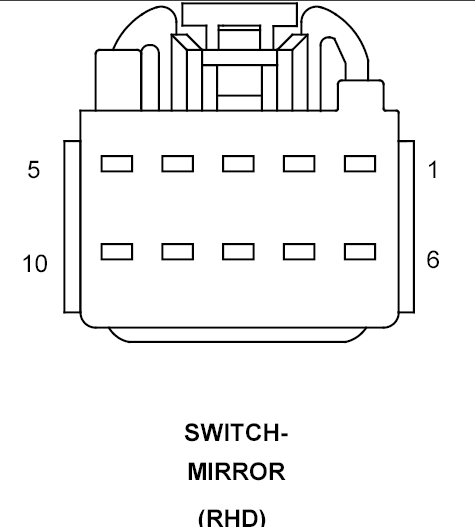

Mirror Switch (RHD) Connector End View
SWITCH-MIRROR - 10 WAY (RHD)
| CAV | CIRCUIT | FUNCTION |
| 1 | P110 20LG/WT | FOLDING MIRROR RETURN |
| 1 | P110 20LG/WT | FOLDING MIRROR RETURN (JS41) |
| 2 | - | - |
| 3 | P76 20LG | MIRROR COMMON DRIVER |
| 3 | P76 20LG | MIRROR COMMON DRIVER (JS41) |
| 4 | Z908 20BK | GROUND |
| 5 | A417 20RD/DB | FUSED B(+) (I.O.D.) |
| 6 | P71 20TN/DG | DRIVER MIRROR VERTICAL DRIVER |
| 7 | P72 20TN/GY | PASSENGER MIRROR VERTICAL DRIVER |
| 8 | P75 20TN/LG | DRIVER MIRROR HORIZONTAL DRIVER |
| 9 | P74 20TN/OR | PASSENGER MIRROR HORIZONTAL DRIVER |
| 10 | P699 20LG/DG | FOLDING/UNFOLDING |
| 10 | P699 20LG/DG | FOLDING/UNFOLDING (JS41) |
