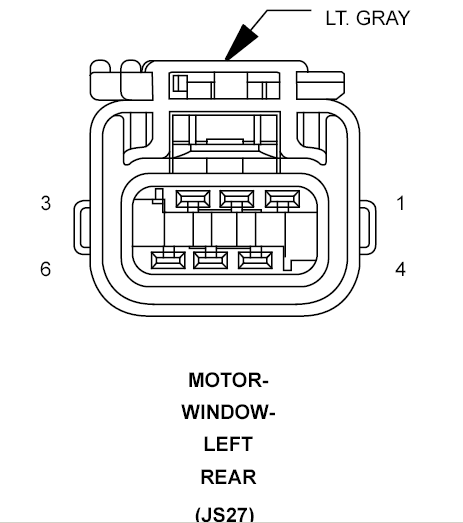

Left Rear Window Motor (Convertible) Connector End View
MOTOR-WINDOW-LEFT REAR - LT. GRAY 6 WAY (JS27)
| CAV | CIRCUIT | FUNCTION |
| 1 | Q992 20BK/GY | REAR WINDOW MOTOR RETURN |
| 2 | Q309 20LB/OR | LEFT REAR WINDOW HALL SENSOR B SIGNAL |
| 3 | Q211 14TN/LB | LEFT REAR WINDOW DRIVER (DOWN) |
| 4 | Q315 20OR | LEFT REAR WINDOW HALL SENSOR SUPPLY |
| 5 | Q307 20OR/LB | LEFT REAR WINDOW HALL SENSOR A SIGNAL |
| 6 | Q111 14TN/YL | LEFT REAR WINDOW DRIVER (UP) |
