Sebring Base, 2D Convertible, ED3
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>

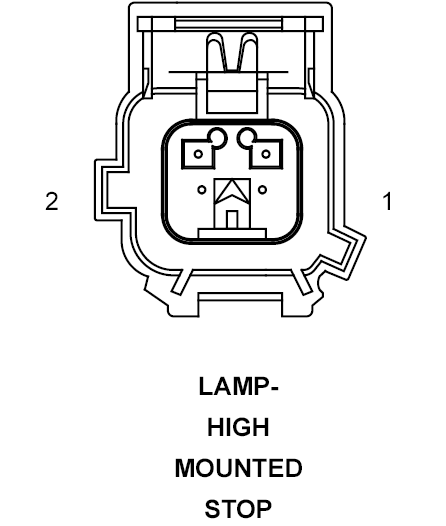

High Mounted Stop Lamp Connector End View
High Mounted Stop Lamp Connector End View
LAMP-HIGH MOUNTED STOP - 2 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z916 20BK
GROUND
2
L53 20DG/WT
STOP LAMP SWITCH OUTPUT
