Battery Side Starter Connector End View
Battery Side Starter Connector End View

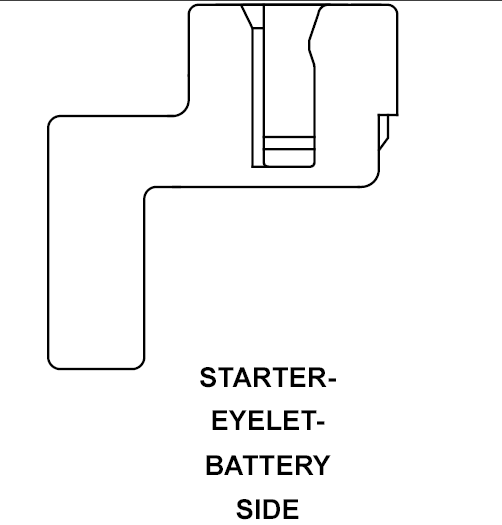

STARTER-EYELET-BATTERY SIDE - 1 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A8 4RD
B(+)
