Diagnostic Test

CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Wait 30 seconds.
4. With the scan tool, read DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go to step 2
  No
  - The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
(D506) LIN BUS CIRCUIT OPEN

Fig 1: Checking LIN BUS Circuit For Open
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Heated Seats Module harness connector.
3. Turn the ignition on.
4. Measure the voltage of the (D506) LIN BUS circuit.
  Is the voltage above 5 volts?

  Yes
  - Go to step 3
  No
  - Repair the (D506) LIN BUS circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
(F937) FUSED IGNITION SWITCH OUTPUT (RUN) OPEN

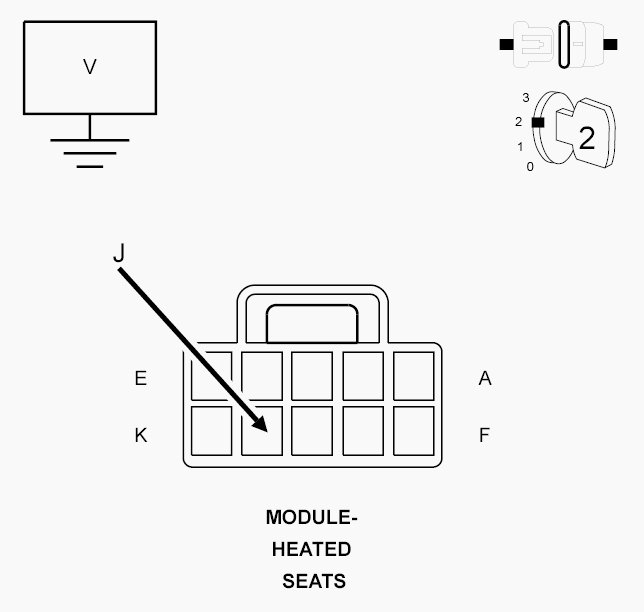

Fig 2: Checking Fused Ignition Switch Output (Run) For Open
Courtesy of CHRYSLER LLC
1. Measure the voltage of the (F937) Fused Ignition Switch Output (RUN) circuit.
  Is the voltage above 10 volts?

  Yes
  - Go to step 4
  No
  - Repair the (F937) Fused Ignition Switch Output (RUN) circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
(Z914) GROUND CIRCUIT OPEN

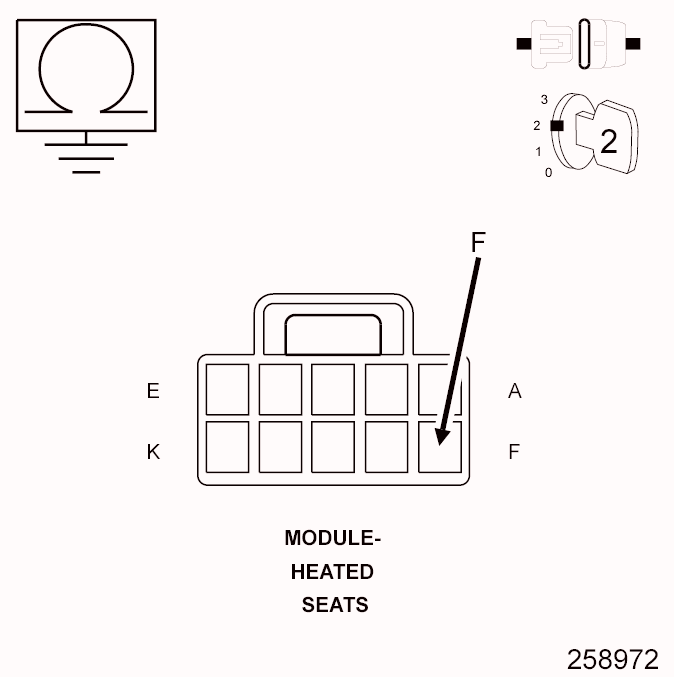

Fig 3: Checking Ground Circuit For Open
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the (Z914) Ground circuit.
  Is the resistance below 10K ohms?

  Yes
  - Replace the Heated Seats Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
  No
  - Repair the (Z914) ground circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
