MODULE, Engine Control: Installation: Installation

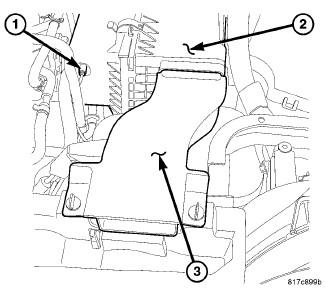

Fig 1: Removing/Installing ECM - 2.0L Diesel

Courtesy of CHRYSLER LLC

1. Install ECM (3) on mounting bracket. Torque fastener to 10.7 N.m (95 lbs. in.).
2. Connect both ECM electrical connectors (1).
   Fig 2: Air Inlet Duct

   Courtesy of CHRYSLER LLC
3. Install air filter housing assembly (2).
4. Connect vacuum hose (1).
5. Connect negative battery cable.
6. Install air inlet tube (3).
7. Reprogram ECM. See Electrical - Electronic Control Modules/Electronic Control Modules/MODULE, Engine Control - Standard Procedure .
