COIL, Ignition: Removal: 2.4L

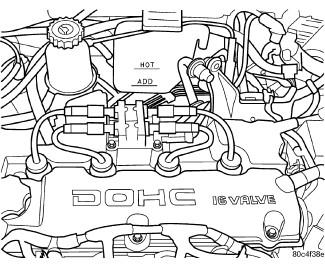

Fig 1: Electronic Ignition Coil Pack-2.4L
GC0114322Courtesy of CHRYSLER LLC
  1. Remove the negative battery cable.
  2. Disconnect electrical connector from coil pack.
  3. Remove spark plug cables from coil pack.
  4. Remove coil pack mounting bolts.
  5. Remove coil pack.
