Module, Engine Control: Removal: Removal

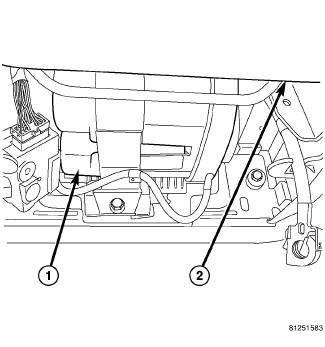

Fig 1: Battery Location

Courtesy of CHRYSLER LLC

1 - BATTERY

2 - PASSENGER SEAT

1. Disconnect negative battery (1) cable.
2. Remove air cleaner housing assembly. Refer to Engine/Air Intake System/BODY, Air Cleaner - Removal .

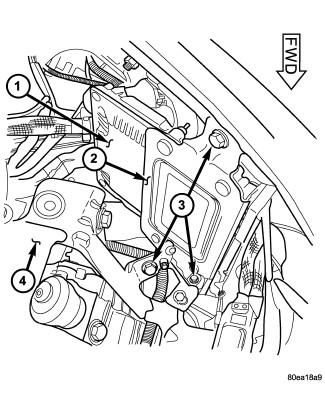

   Fig 2: ECM Location

   Courtesy of CHRYSLER LLC

   1 - ECM

   2 - ECM BRACKET

   3 - RETAINING BOLTS

   4 - AIR CLEANER HOUSING MOUNTING BRACKET

3. Disconnect both ECM electrical connectors by pulling tabs at ends of connectors.
4. Remove ECM bracket (2) retaining bolts (3) and remove ECM and bracket (2) assembly from vehicle. See Fig 2.

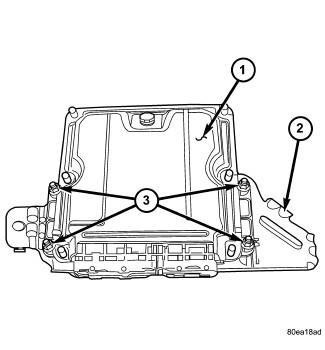

   Fig 3: ECM & Bracket Assembly

   Courtesy of CHRYSLER LLC

   1 - ECM

   2 - ECM BRACKET

   3 - RETAINING NUTS

5. Remove ECM to bracket retaining nuts (3) and remove ECM (1) from bracket (2). See Fig 3.
