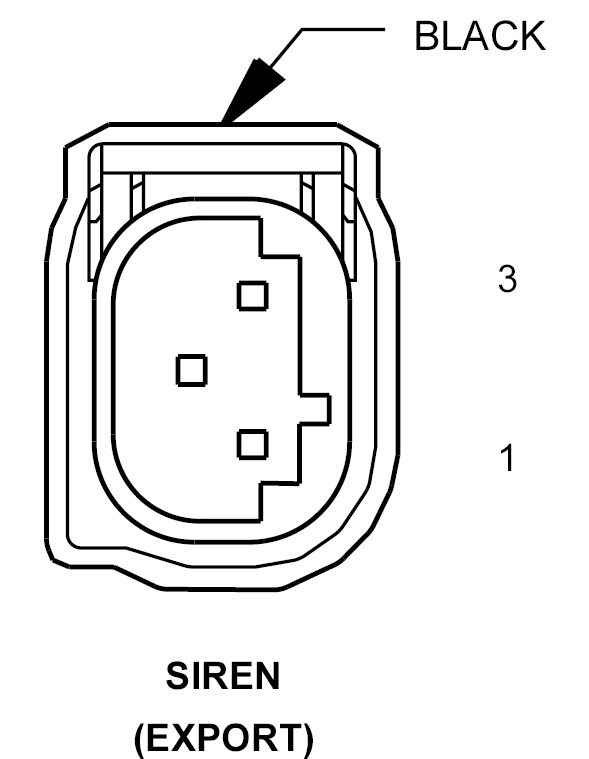

Siren (Export) Connector End View
Siren (Export) Connector End View
SIREN - BLACK 3-WAY (EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A414 20RD
FUSED B(+) (I.O.D.)
2
Z902 20BK
GROUND
3
D96 20WT/LB
SIREN SIGNAL CONTROL
Courtesy of CHRYSLER CORP.
