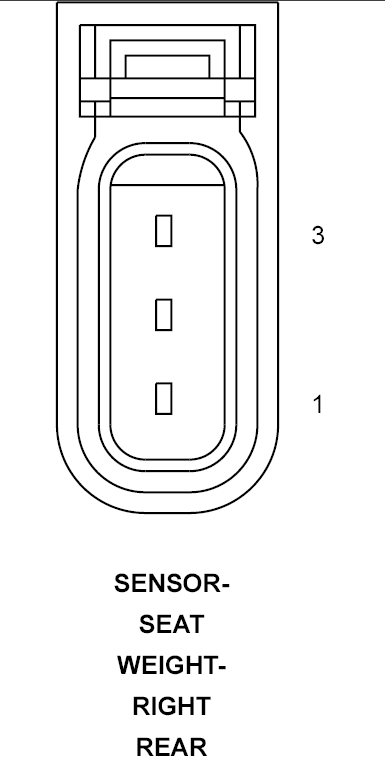

Right Rear Seat Weight Sensor Connector End View
SENSOR-SEAT WEIGHT-RIGHT REAR - 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R728 20LB/YL |
SEAT WEIGHT SENSOR GROUND |
| 2 |
R706 20LB/OR |
SEAT WEIGHT RIGHT REAR SENSOR SIGNAL |
| 3 |
R701 20LG |
SEAT WEIGHT SENSOR 5 VOLT |
