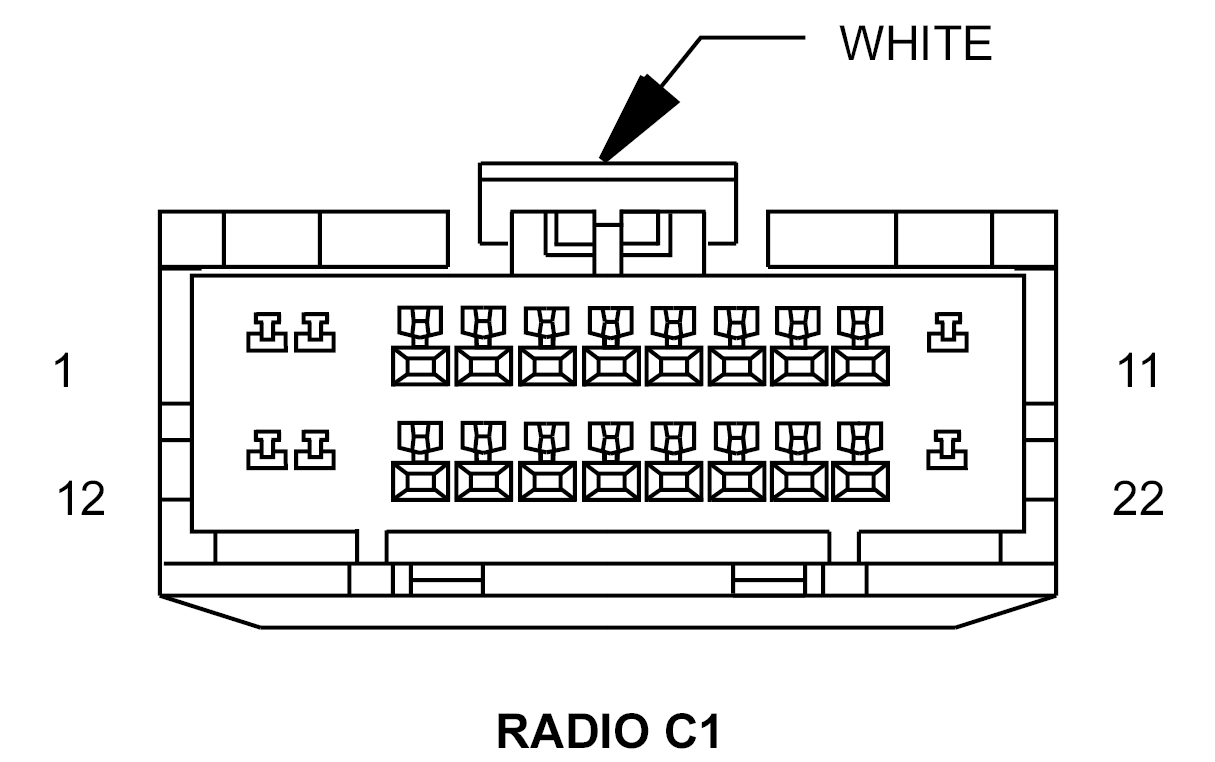

Radio Connector End View (C1)
RADIO C1 - WHITE 22-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A413 18RD | FUSED B(+) (I.O.D.) |
| 2 | - | - |
| 3 | - | - |
| 4 | X703 22DG/OR | LEFT AUDIO OUTPUT (HANDS FREE) |
| 5 | D55 20WT/OR | CAN B BUS (+) |
| 6 | D54 20WT | CAN B BUS (-) |
| 7 | X202 18DG/VT | RIGHT FRONT SPEAKER (+) (BASE) |
| 8 | X292 18DG/YL | RIGHT FRONT SPEAKER (-) (BASE) |
| 9 | X291 18GY/YL | LEFT FRONT SPEAKER (-) (BASE) |
| 10 | X201 18GY/VT | LEFT FRONT SPEAKER (+) (BASE) |
| 11 | Z906 18BK | GROUND |
| 12 | A413 18RD | FUSED B(+) (I.O.D.) |
| 13 | X60 16GY/OR | ANTENNA SIGNAL (EXPORT) |
| 14 | - | - |
| 15 | - | - |
| 16 | X704 22DG/YL | RIGHT AUDIO OUTPUT (HANDS FREE) |
| 17 | X795 22DG | COMMON AUDIO OUTPUT (HANDS FREE) |
| 18 | X303 18DG/TN | LEFT REAR SPEAKER (+) (BASE) |
| 18 | X51 20DG/DB | LEFT REAR SPEAKER (+) (PREMIUM) |
| 19 | X393 18DG/GY | LEFT REAR SPEAKER (-) (BASE) |
| 19 | X57 20DG/OR | LEFT REAR SPEAKER (-) (PREMIUM) |
| 20 | X394 18YL/GY | RIGHT REAR SPEAKER (-) (BASE) |
| 20 | X58 20GY/OR | RIGHT REAR SPEAKER (-) (PREMIUM) |
| 21 | X304 18DG/BR | RIGHT REAR SPEAKER (+) (BASE) |
| 21 | X52 20GY/DB | RIGHT REAR SPEAKER (+) (PREMIUM) |
| 22 | Z906 18BK | GROUND |
