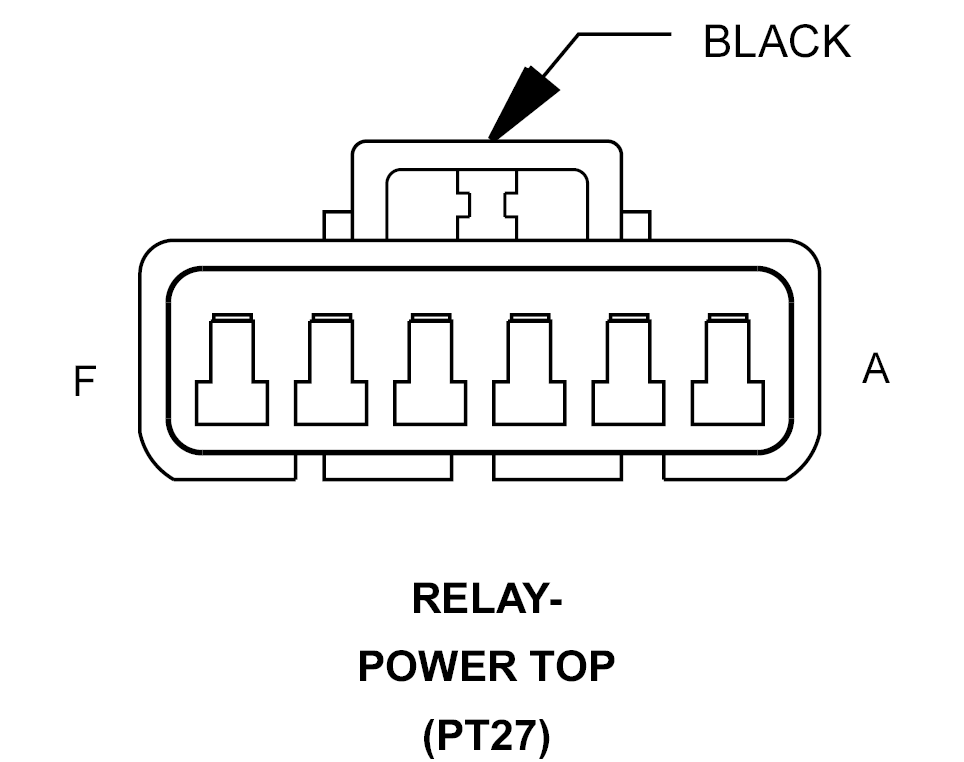

Power Top Relay (Convertible) Connector End View
RELAY-POWER TOP - BLACK 6-WAY (PT27)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
P90 20LG/OR |
TOP UP RELAY CONTROL |
| B |
P3 12YL |
TOP UP RELAY OUTPUT |
| C |
A925 12RD |
FUSED B(+) |
| D |
Z908 12BK |
GROUND |
| E |
P4 12RD |
TOP DOWN RELAY OUTPUT |
| F |
P80 20LG/LB |
TOP DOWN RELAY CONTROL |
