Left Tail Turn Lamp Connector End View

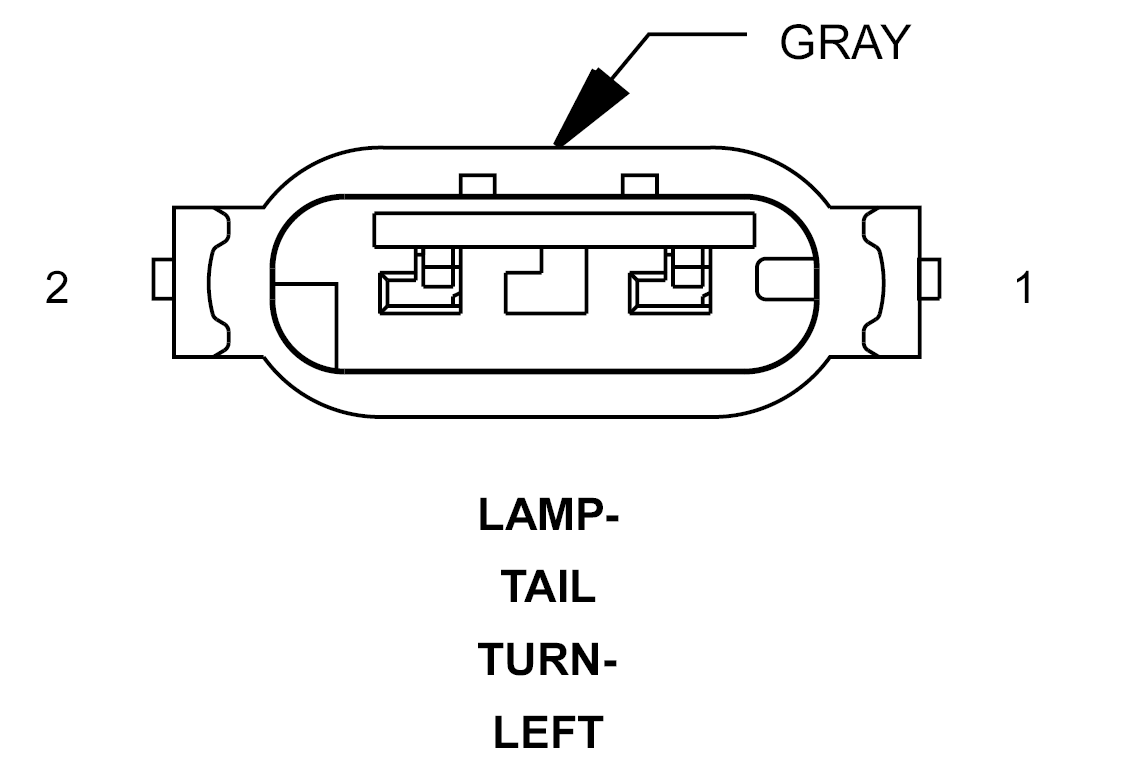

LAMP-TAIL TURN-LEFT - GRAY 2-WAY

GPT780175Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 L63 20WT/DG LEFT REAR TURN SIGNAL
2 Z908 20BK GROUND
