Left Seat Back Heater Connector End View

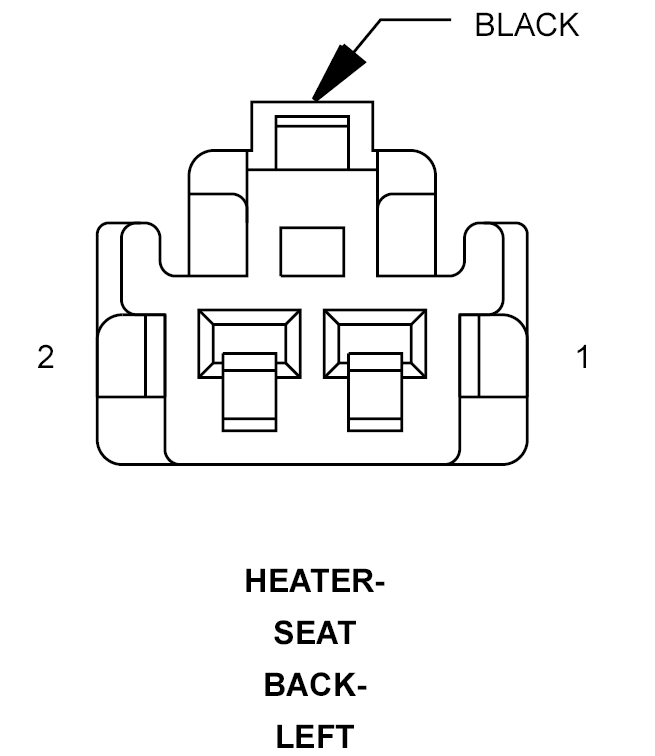

Left Seat Back Heater Connector End View
HEATER-SEAT BACK-LEFT - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z908 18BK
GROUND
2
P187 18DG/RD
LEFT SEAT HEATER B(+) DRIVER
Courtesy of CHRYSLER CORP.
