Left Rear Window Motor (Hatchback) Connector End View

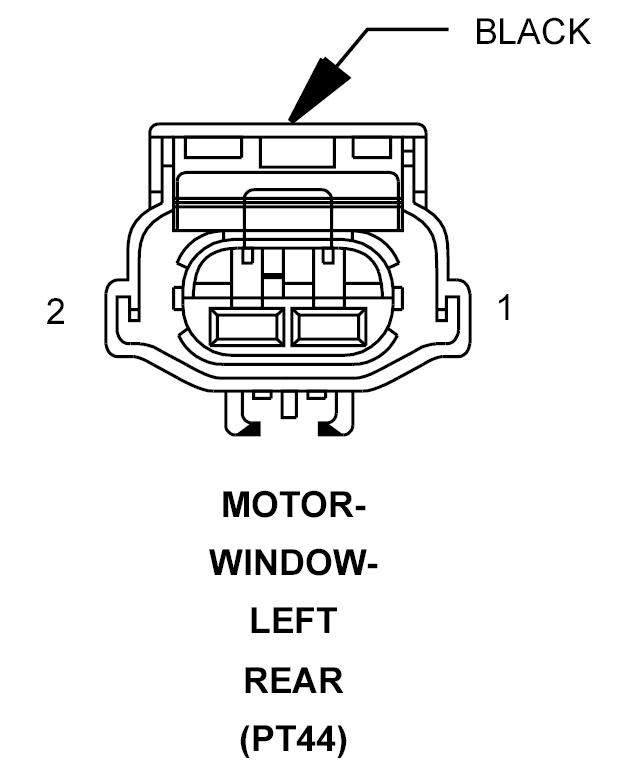

MOTOR-WINDOW-LEFT REAR - BLACK 2-WAY (PT44)

GPT780254Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Q211 14TN/LB LEFT REAR WINDOW DRIVER (DOWN)
2 Q111 14TN/YL LEFT REAR WINDOW DRIVER (UP)
