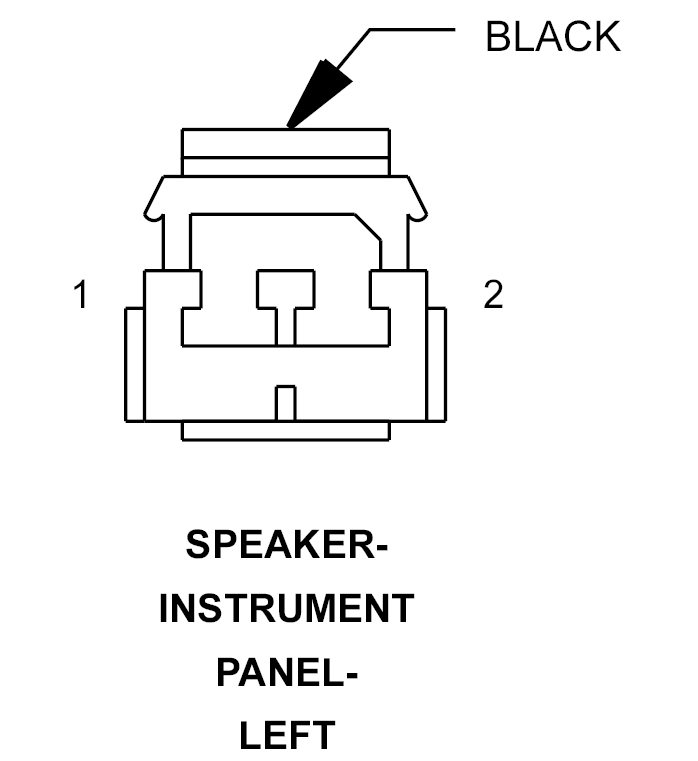

Left Instrument Panel Speaker Connector End View
SPEAKER-INSTRUMENT PANEL-LEFT - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X201 18GY/VT |
LEFT FRONT SPEAKER (+) (BASE AUDIO) |
| 1 |
X209 18GY/OR |
LEFT INSTRUMENT PANEL SPEAKER (+) (PREMIUM AUDIO) |
| 2 |
X291 18GY/YL |
LEFT FRONT SPEAKER (-) (BASE AUDIO) |
| 2 |
X299 18GY/YL |
LEFT INSTRUMENT PANEL SPEAKER (-) (PREMIUM AUDIO) |
