Left High Beam Lamp Connector End View
Left High Beam Lamp Connector End View

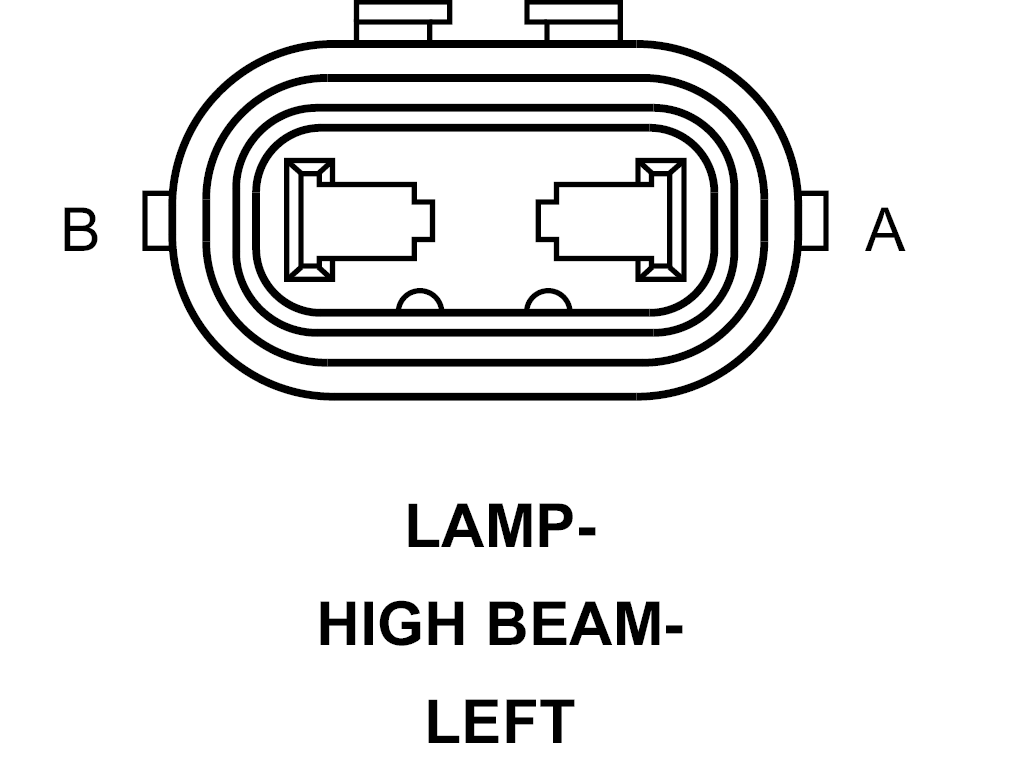

LAMP-HIGH BEAM-LEFT - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
A
L33 20WT/LG
HIGH BEAM OUTPUT
B
Z902 20BK
GROUND
B
Z902 20BK
GROUND
B
L33 20WT/LG
HIGH BEAM OUTPUT (OPTION 2)
Courtesy of CHRYSLER CORP.
