Left Dome Lamp (Convertible) Connector End View
Left Dome Lamp (Convertible) Connector End View

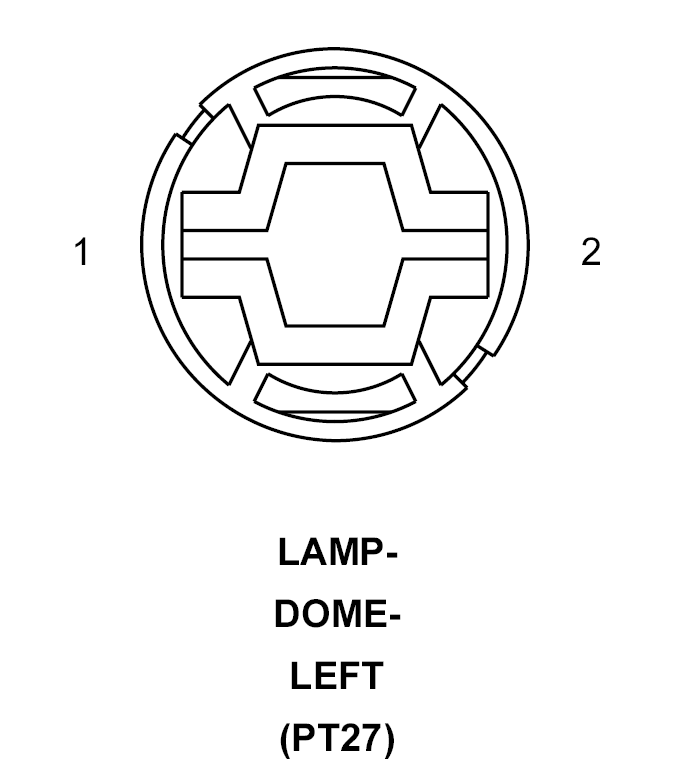

LAMP-DOME-LEFT - 2-WAY (PT27)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
M24 20PK
COURTESY LAMPS DRIVER
2
Z908 20BK
GROUND
Courtesy of CHRYSLER CORP.
