Hood Ajar Switch (Export) Connector End View
Hood Ajar Switch (Export) Connector End View

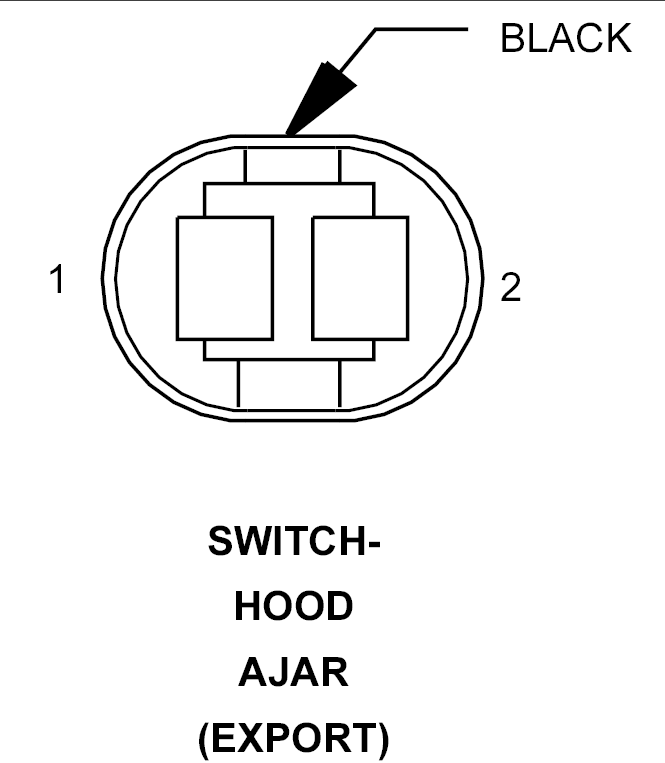

SWITCH-HOOD AJAR - BLACK 2-WAY (EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G70 20BR/TN
HOOD AJAR SWITCH SENSE
2
Z902 20BK
GROUND
Courtesy of CHRYSLER CORP.
