Generator Side Starter (Diesel) Connector End View
Generator Side Starter (Diesel) Connector End View

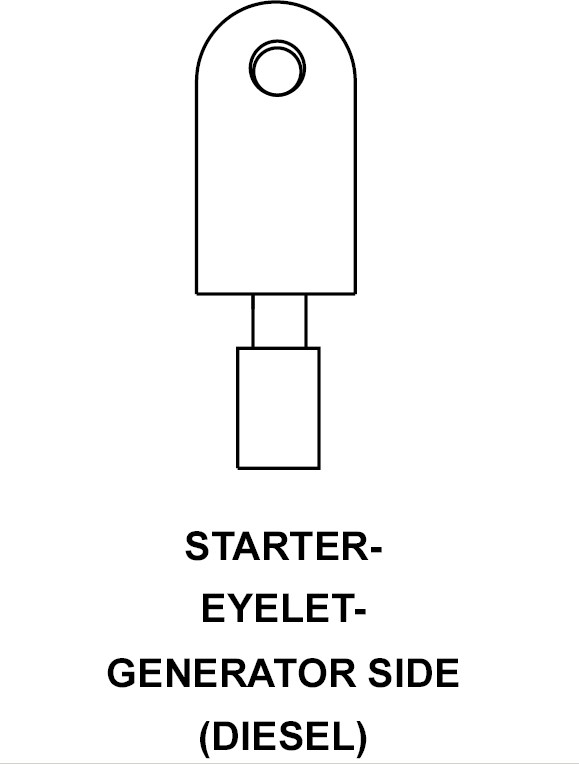

STARTER-EYELET-GENERATOR SIDE - 1-WAY (DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A11 8LB
B(+)
Courtesy of CHRYSLER CORP.
