INSULATOR, Engine Mount, Right: Installation: Installation

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

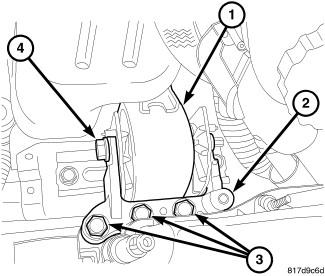

Fig 1: RIGHT ENGINE MOUNT
GC0102765Courtesy of CHRYSLER LLC
  1. Position right engine mount (1).
  2. Install engine mount retaining bolts and tighten to 75 N.m (55 ft. lbs.).
  3. Install engine mount adapter (2) and tighten bolts (3) to 68 N.m (50 ft. lbs.).
  4. Install engine mount through bolt (4) and tighten to 88 N.m (65 ft. lbs.).

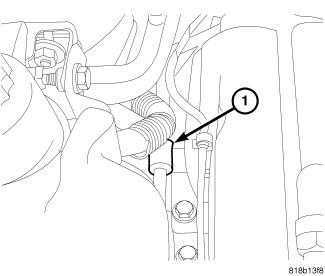

    Fig 2: POWER STEERING LINE SUPPORT
    GC0102766Courtesy of CHRYSLER LLC
  5. Remove jack.
  6. Install power steering line support bracket (1) at engine mount.

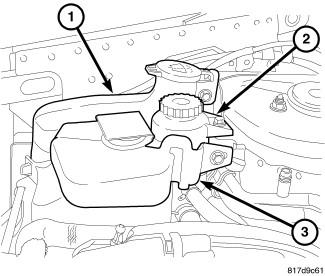

    Fig 3: COOLANT RESERVOIR
    GC0102767Courtesy of CHRYSLER LLC
  7. Install windshield washer bottle (1).
  8. Install power steering reservoir (2).
  9. Install coolant reservoir (3).
  10. Install engine cover.
