DAMPER, Vibration: Installation: Installation

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

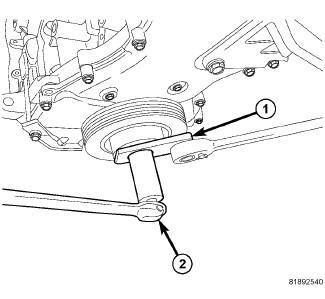

Fig 1: DAMPER REMOVAL
GC0102738Courtesy of CHRYSLER LLC
  1. Install crankshaft damper.
  2. Apply clean engine oil crankshaft damper bolt threads and between bolt head and washer. Tighten bolt to 210 N.m (155 ft. lbs.).
  3. Install accessory drive belts. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation .
