INSULATOR, Engine Mount, Left: Installation: Installation

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

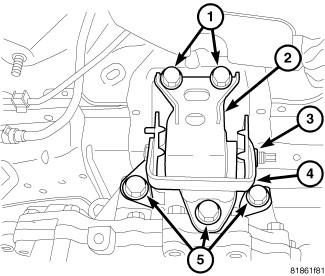

Fig 1: Removing/Installing Left Engine Mount
GC0102889Courtesy of CHRYSLER LLC
  1. Position mount (2) in place.
  2. Install left mount to frame rail bolts (1) and torque to 75 N.m (55 ft. lbs.).
  3. Install mount through bolt (3) and torque to 100 N.m (74 ft.lbs.).
  4. Remove jack.

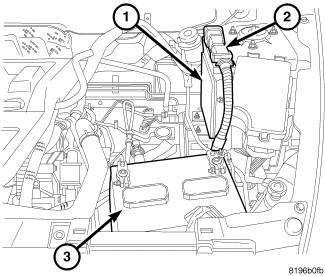

    Fig 2: Disconnecting/Connecting Negative Cable At Battery
    GC0102887Courtesy of CHRYSLER LLC
  5. Install PCM mounting bracket.
  6. Install PCM (1).
  7. Connect negative cable to battery (3).

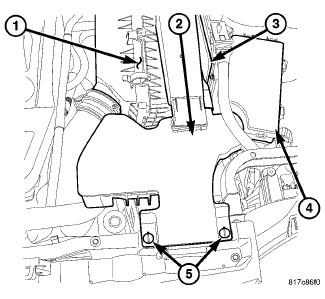

    Fig 3: Removing/Installing Air Cleaner Housing & Air Cleaner Inlet
    GC0102891Courtesy of CHRYSLER LLC
  8. Install air cleaner housing (1) and air cleaner inlet (2).
