P0513-Invalid Skim Key: Notes

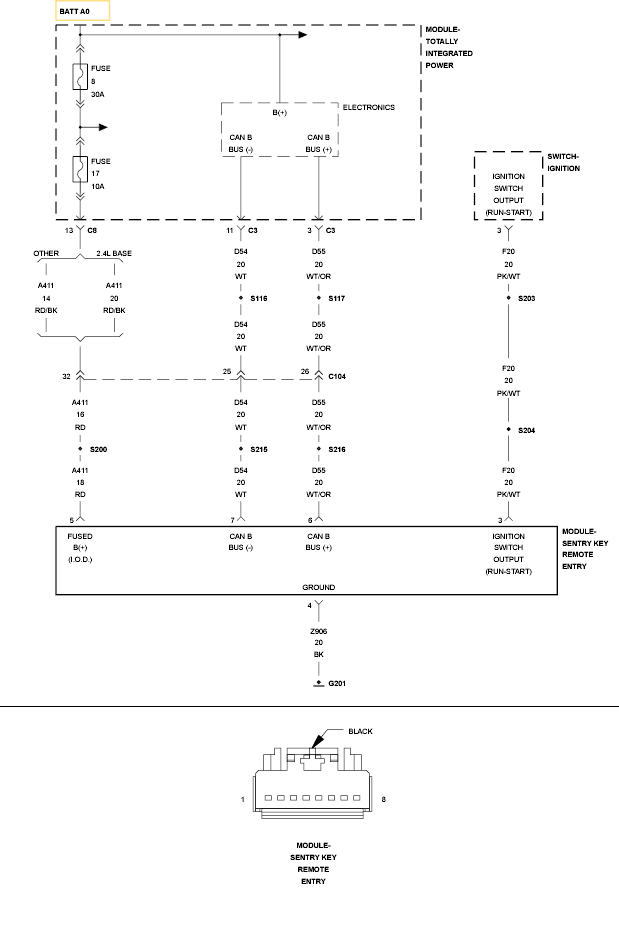

Fig 1: Sentry Key Remote Entry Module Circuit

GC0117286

Courtesy of CHRYSLER LLC
