P0234-OVERBOOST Performance: Notes

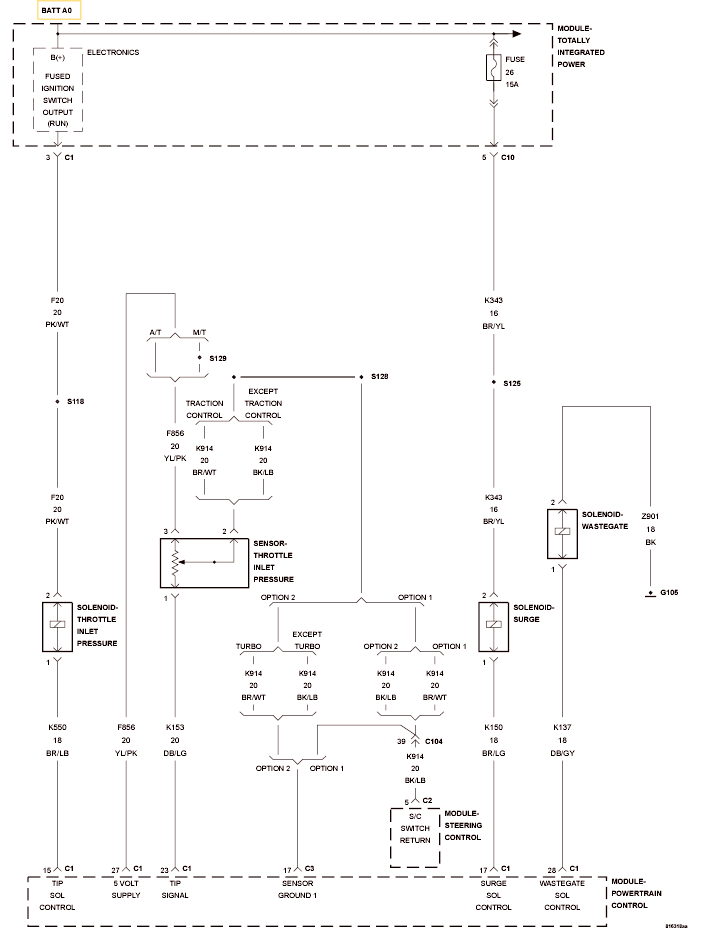

Fig 1: Surge Valve Solenoid Circuit

GC0117128

Courtesy of CHRYSLER LLC
